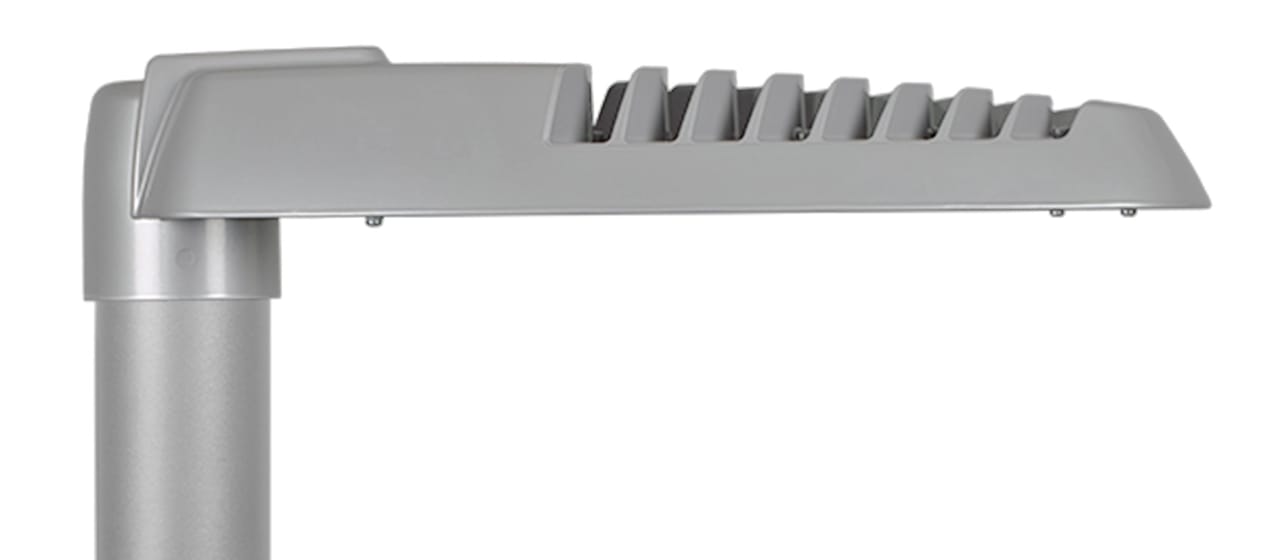

Evolume 1 Crossing

Lumen output

8093

CLO function active

Yes

CLO time, h

75 000

lm/W

132

CCT, K

3000

CRI

70

SDCM

4

Lumen maintenance 75 000 h

L100

Lumen maintenance L100 B50, h

75 000

LED driver, h/max failure %

100000/10

Driver brand

Philips

AM

Yes

Rated supply voltage, V

220-240

Mains frequency, Hz

50, 60

Protective class

1

IP rating

66

IK rating

08

Start W

61

End W

77

Average W

69

Stand by W

0.5

Min. ambient temperature, °C

-40

Max. ambient temperature, °C

25

MCB B10A, pcs

5

MCB B16A

8

MCB C10A

8

MCB C16A

13

THD, %

8

Surge protection CM, kV/kA

10

Surge protection DM, kV/kA

6

Power factor, 100 %

0.97

Power factor, 20 %

0.82

Corrosion class

C3

Projected wind area, m2

0.047

Length, mm

555

Width, mm

348

Height, mm

86

Weight, kg

8.3
