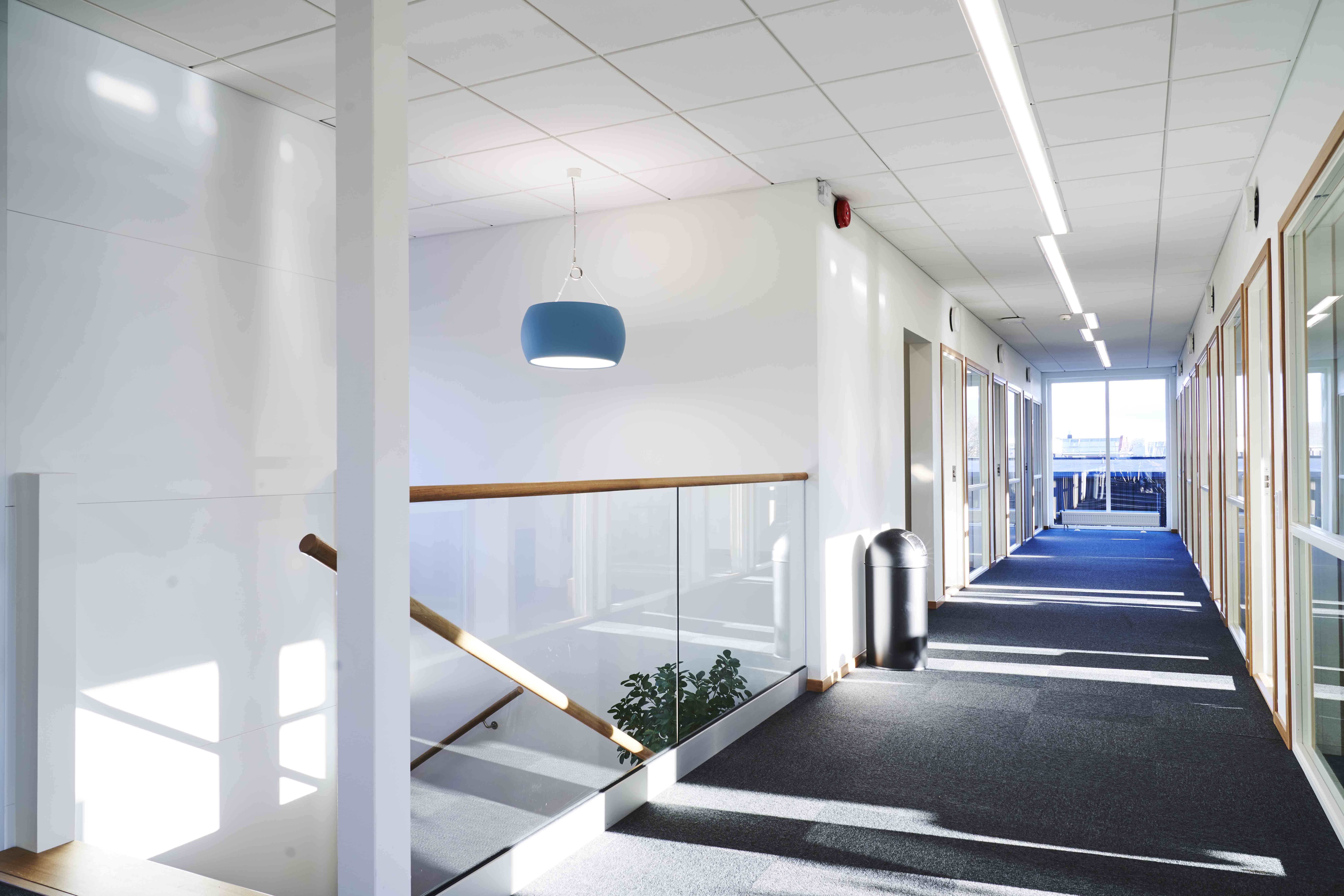

Sweep

A modern direct/indirect lighting solution for modern offices. Available with Opal or Delta louvres in five colours.

Installation

Two point suspension c/c 48 mm.

Connection

For permanent connection with 230 V; built-in LED driver. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible. Surface mounted mains cable possible 180°.

Design

Luminaire body in plastic enamelled in various colours. Supplied with 5  m wire, 6 m transparent cable and white, plastic ceiling cup. Height adjustment is done on the luminaire using a friction lock. The ceiling cup handles inclined ceilings up to 20°.

Louvre

Opal - opal acrylic diffuser.
Delta – microprism louvre in acrylic (PMMA).

Light distribution

Direct/indirect 55/45.

Dimming

DALI/phase-pulse control as standard.

Designed by

PetterssonRudberg.

Miscellaneous

For a surface mounted mains cable, a cut-out is made in the ceiling cup using cutters 94248.

Media

Sweep ceiling cup

Sweep ceiling cup

Installation clips

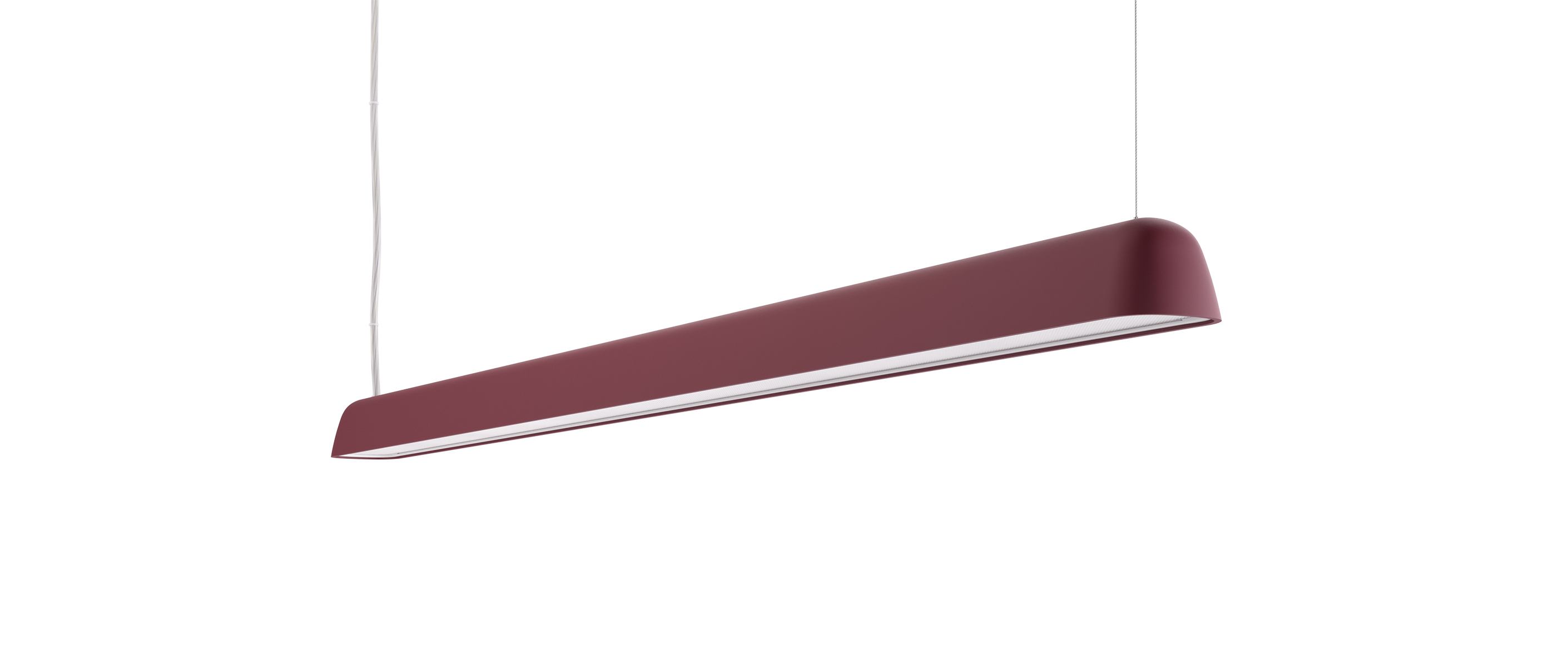

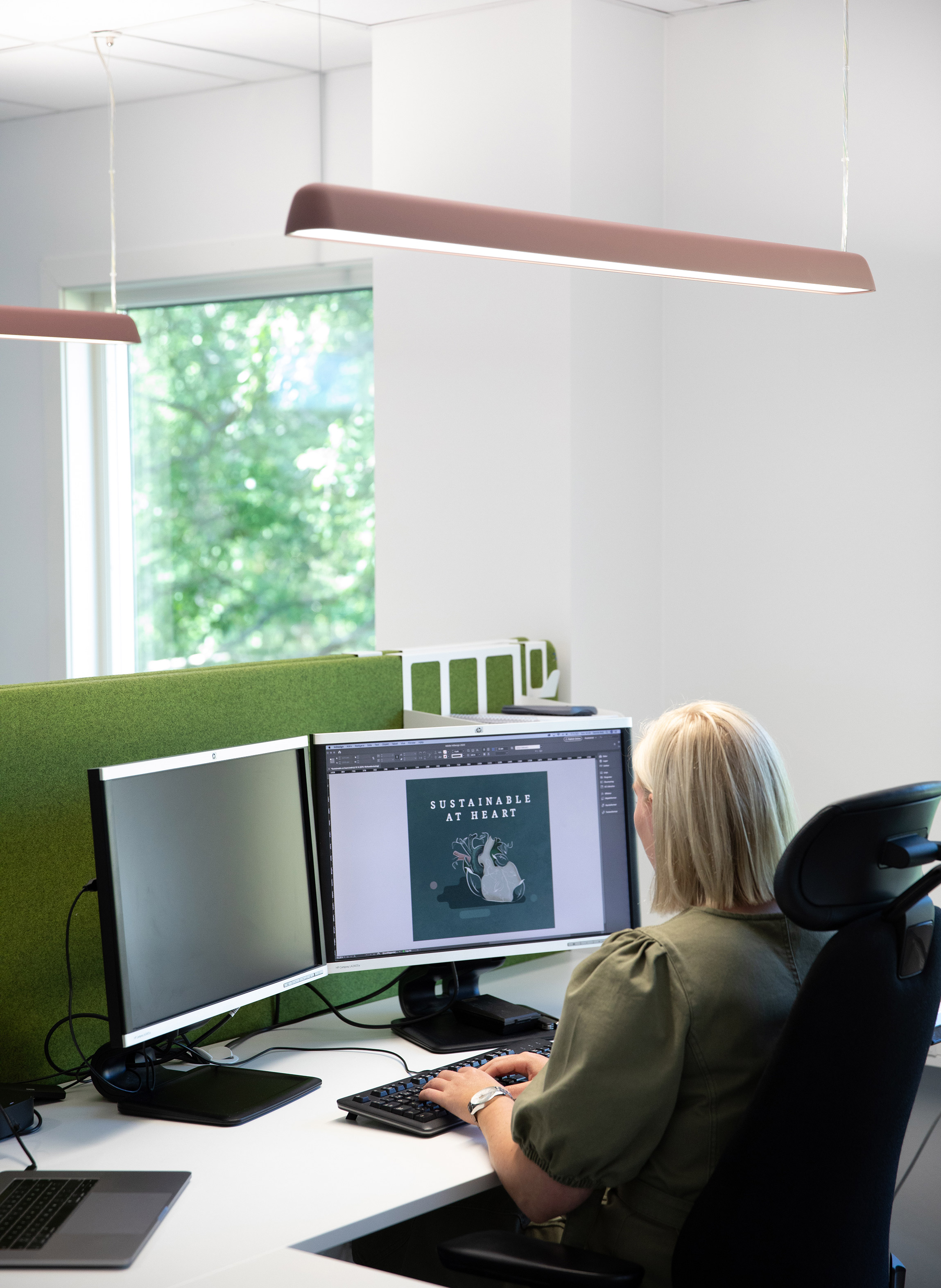

Sweep and Scoot

The Sweep and Scoot family are attractive luminaires with colour, shape and function in focus. A team where comfort and feeling are central concepts. The luminaires are durable and future-proof, and meet the demands of a modern...

More about the family Sweep and Scoot

Document

Specification

Filter

Showing 52 of 0 articles

Art.no.System WattageLumen outputCCT, KColourDiamater, mmLouvreLight controlCLO function activeMiscellaneous
Art.no.System WattageLumen outputCCT, KColourDiamater, mmLouvreLight controlCLO function activeMiscellaneous
54880-402 28 3992 3000 Dusty Plum 506 Opal DALI/Phase-pulse Yes
54881-402 28 4107 4000 Dusty Plum 506 Opal DALI/Phase-pulse Yes
54882-402 28 3896 3000 Dusty Plum 506 Delta DALI/Phase-pulse Yes
54883-402 28 4008 4000 Dusty Plum 506 Delta DALI/Phase-pulse Yes
54884-402 55 7113 3000 Dusty Plum 715 Opal DALI/Phase-pulse Yes
54885-402 55 7318 4000 Dusty Plum 715 Opal DALI/Phase-pulse Yes
54886-402 55 6881 3000 Dusty Plum 715 Delta DALI/Phase-pulse Yes
54887-402 55 7079 4000 Dusty Plum 715 Delta DALI/Phase-pulse Yes
54888 41 4107 Dusty Plum 506 Opal Yes Tunable White
54889 41 4038 Dusty Plum 506 Delta Yes Tunable White
54900-402 28 3992 3000 Black 506 Opal DALI/Phase-pulse Yes
54901-402 28 3992 3000 White 506 Opal DALI/Phase-pulse Yes
54902-402 28 3992 3000 Green 506 Opal DALI/Phase-pulse Yes
54903-402 28 3992 3000 Blue 506 Opal DALI/Phase-pulse Yes
54905-402 28 4107 4000 Black 506 Opal DALI/Phase-pulse Yes
54906-402 28 4107 4000 White 506 Opal DALI/Phase-pulse Yes
54907-402 28 4107 4000 Green 506 Opal DALI/Phase-pulse Yes
54908-402 28 4107 4000 Blue 506 Opal DALI/Phase-pulse Yes
54910-402 28 3896 3000 Black 506 Delta DALI/Phase-pulse Yes
54911-402 28 3896 3000 White 506 Delta DALI/Phase-pulse Yes
54912-402 28 3896 3000 Green 506 Delta DALI/Phase-pulse Yes
54913-402 28 3896 3000 Blue 506 Delta DALI/Phase-pulse Yes
54915-402 28 4008 4000 Black 506 Delta DALI/Phase-pulse Yes
54916-402 28 4008 4000 White 506 Delta DALI/Phase-pulse Yes
54917-402 28 4008 4000 Green 506 Delta DALI/Phase-pulse Yes
54918-402 28 4008 4000 Blue 506 Delta DALI/Phase-pulse Yes
54920-402 55 7113 3000 Black 715 Opal DALI/Phase-pulse Yes
54921-402 55 7113 3000 White 715 Opal DALI/Phase-pulse Yes
54922-402 55 7113 3000 Green 715 Opal DALI/Phase-pulse Yes
54923-402 55 7113 3000 Blue 715 Opal DALI/Phase-pulse Yes
54925-402 55 7318 4000 Black 715 Opal DALI/Phase-pulse Yes
54926-402 55 7318 4000 White 715 Opal DALI/Phase-pulse Yes
54927-402 55 7318 4000 Green 715 Opal DALI/Phase-pulse Yes
54928-402 55 7318 4000 Blue 715 Opal DALI/Phase-pulse Yes
54930-402 55 6881 3000 Black 715 Delta DALI/Phase-pulse Yes
54931-402 55 6881 3000 White 715 Delta DALI/Phase-pulse Yes
54932-402 55 6881 3000 Green 715 Delta DALI/Phase-pulse Yes
54933-402 55 6881 3000 Blue 715 Delta DALI/Phase-pulse Yes
54935-402 55 7079 4000 Black 715 Delta DALI/Phase-pulse Yes
54936-402 55 7079 4000 White 715 Delta DALI/Phase-pulse Yes
54937-402 55 7079 4000 Green 715 Delta DALI/Phase-pulse Yes
54938-402 55 7079 4000 Blue 715 Delta DALI/Phase-pulse Yes
54960 68 7330 White 715 Opal Yes Tunable White
54961 68 6963 White 715 Delta Yes Tunable White
54962 41 4107 Black 506 Opal Yes Tunable White
54963 41 4107 White 506 Opal Yes Tunable White
54964 41 4107 Green 506 Opal Yes Tunable White
54965 41 4107 Blue 506 Opal Yes Tunable White
54967 41 4038 Black 506 Delta Yes Tunable White
54968 41 4038 White 506 Delta Yes Tunable White
54969 41 4038 Green 506 Delta Yes Tunable White
54970 41 4038 Blue 506 Delta Yes Tunable White

Filter

NameDescriptionArt.no.
NameDescriptionArt.no.
Cutters Cutters, each 94248
