Pleiad G4 70

22731 Pleiad G4 22731

Fagerhult Configure See items

Recessed mounting in unventilated or ventilated suspended ceilings. Separate ballast and installation clip for easy and tool-free installation supplied as standard. An assembly plate must be used when mounting on soft tile ceilings, see accessories. For detailed information, see the installation instructions.

Installation

Connection

Connection in separate driver box. Snap-in terminal block 3x1.5 mm², 5x1.5 mm² when dimming. The luminaire body and driver are interconnected with a snap-in connector.

Design

Luminaire body in cast aluminium. Visible reflector ring in white (RAL 9003) aluminium. The black reflector also has a black reflector ring (RAL 9005).

Reflector

Reflector of matt metallised aluminium, white (RAL 9003) or black (RAL 9005) finish. Reflector ring in white aluminium (RAL 9003). Lens of clear acrylic.

Miscellaneous

IP 44 under a suspended ceiling, IP 20 above a suspended ceiling. Luminaire body Class III. The supplied driver must be connected to the protective earth. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. Also available with Dim 2 Warm.

Media

Pleiad G4 – Installation

Pleiad G4

Pleiad is a classic that never stagnates. Through continuous development, the luminaire has been improved decade after decade. Pleiad G4 today performs up to 170 lm/W, which meets new lighting needs and achieves high...

More about the family Pleiad G4

Document

Instruction for use

Overview Pleiad G4

Connection DALI resp. phase pulse dimming

Revit

Max

FBX

DWG

3Ds

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

Adapt and optimise the luminaire
Download unique data sheet and light data files
To order, contact your sales representative

Start configuration

Specification

Panel 1

The articles listed below are examples.
Use Fagerhult Configure to adapt and optimise your own version of Pleiad G4 70 by selecting CRI, colour temperatures, optics, luminous flux, accessories, etc.

Filter

Showing 8 of 0 articles

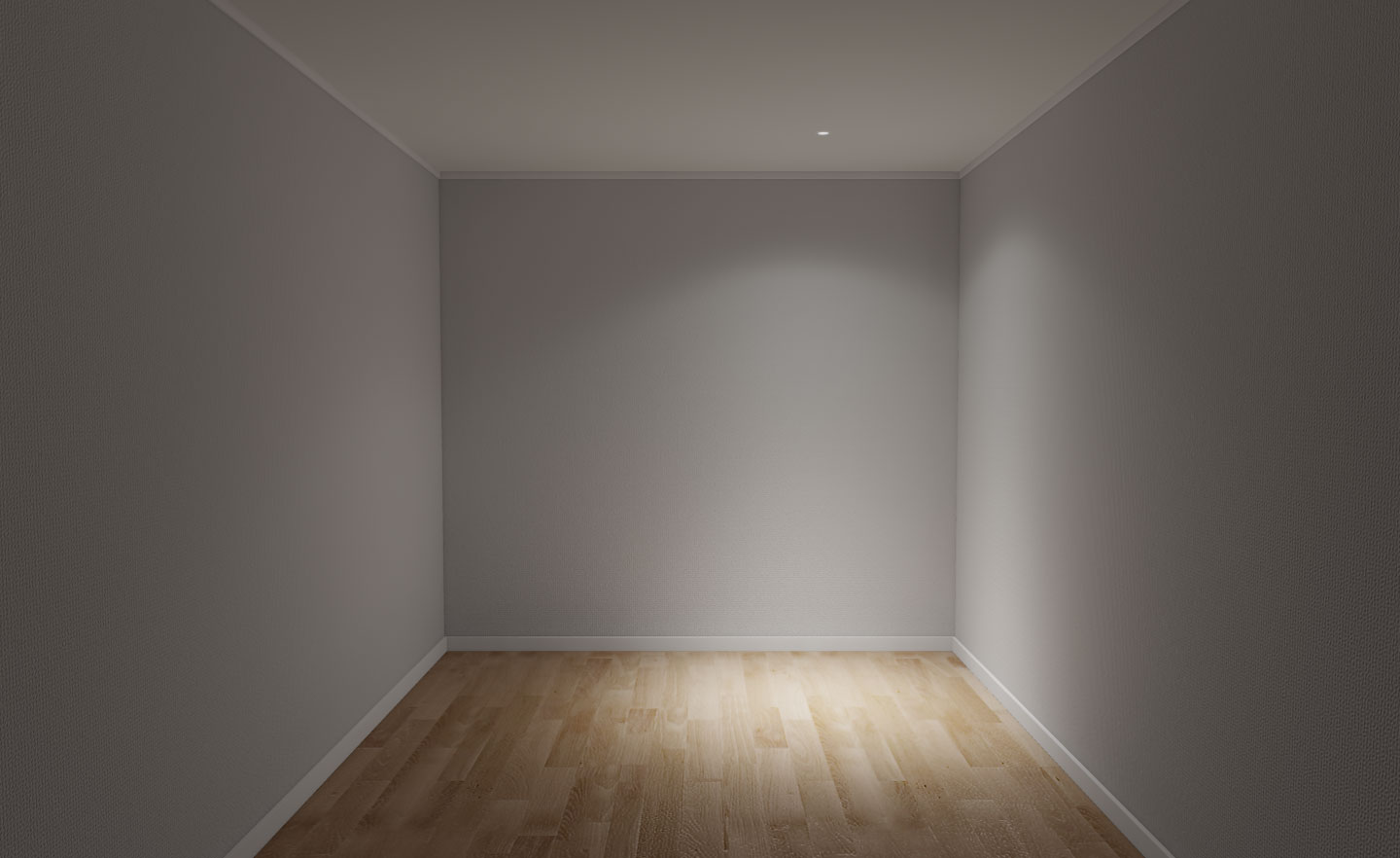

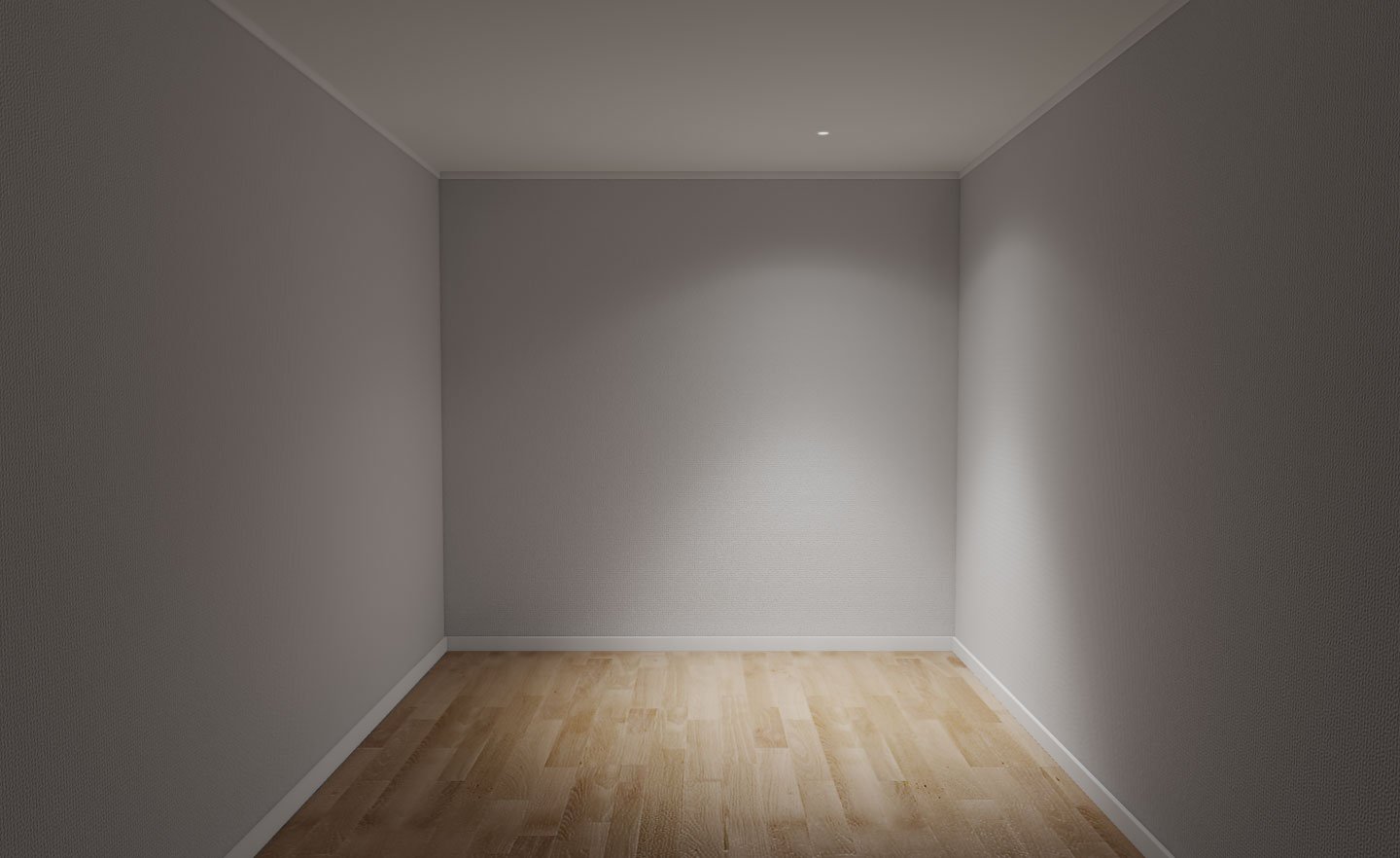

Art.no.	System Wattage	Lumen output	CCT, K	CRI	Diamater, mm	Reflector	Light distribution	Light control	CLO function active
Art.no.	System Wattage	Lumen output	CCT, K	CRI	Diamater, mm	Reflector	Light distribution	Light control	CLO function active
73231-402	9.6	1097	3000	80	82	Matt	Medium Beam, 35	DALI/Phase-pulse	Yes	IES Eulumdat Dialux
73232-402	9.6	1085	3000	80	82	White	Medium Beam, 38	DALI/Phase-pulse	Yes	IES Eulumdat Dialux
73233-402	9.6	921	3000	80	82	Black	Medium Beam, 41	DALI/Phase-pulse	Yes	IES Eulumdat Dialux
73235-402	9.6	1144	4000	80	82	Matt	Medium Beam, 35	DALI/Phase-pulse	Yes	IES Eulumdat Dialux
73236-402	9.6	1131	4000	80	82	White	Medium Beam, 38	DALI/Phase-pulse	Yes	IES Eulumdat Dialux
73237-402	9.6	960	4000	80	82	Black	Medium Beam, 41	DALI/Phase-pulse	Yes	IES Eulumdat Dialux
75201-20711	9.6	921	3000	80	82	Black	Medium Beam, 41	DALI/Phase-pulse	Yes	IES Eulumdat Dialux
75201-20729	9.6	960	4000	80	82	Black	Medium Beam, 41	DALI/Phase-pulse	Yes	IES Eulumdat Dialux
