Notor 65 Delta

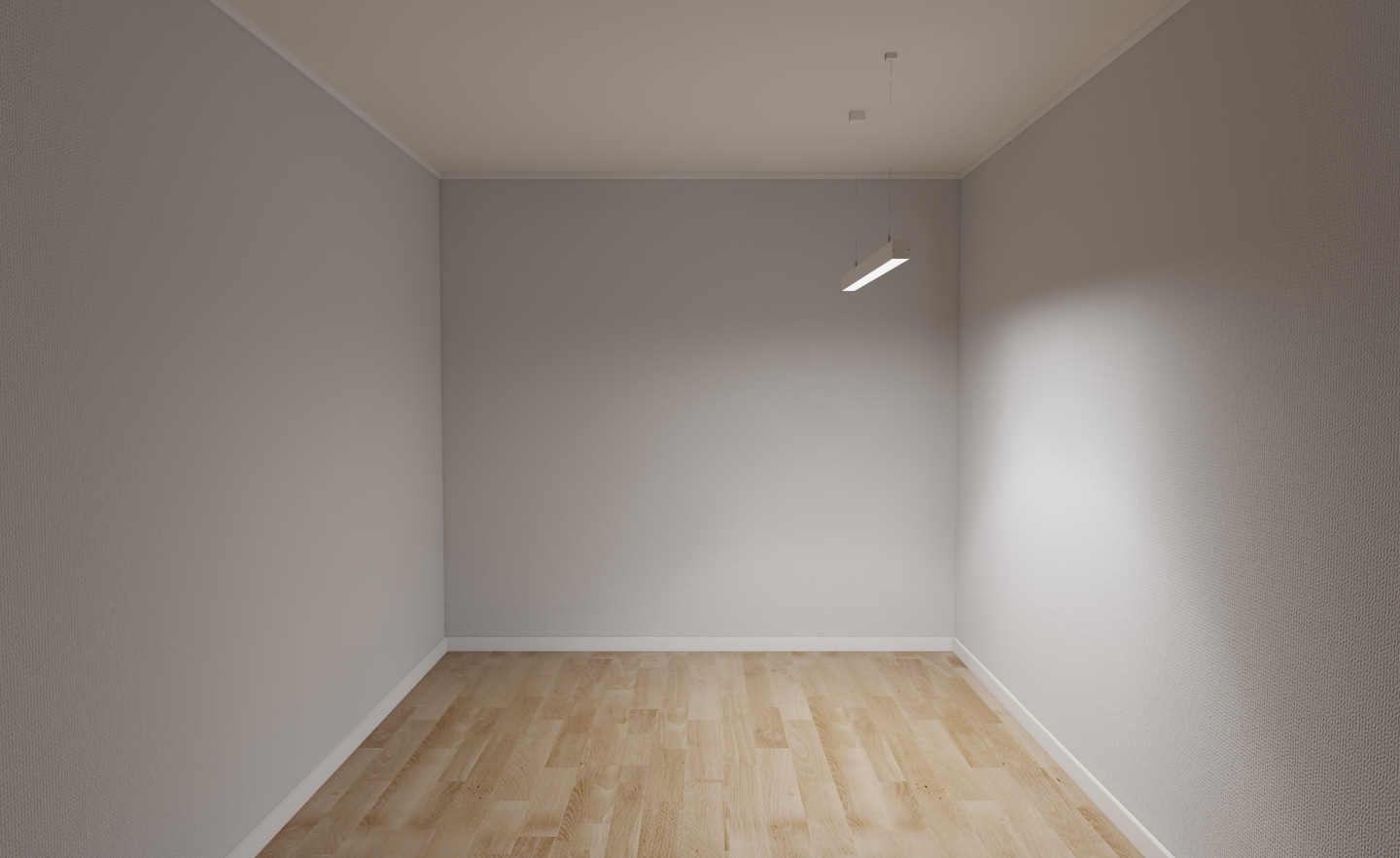

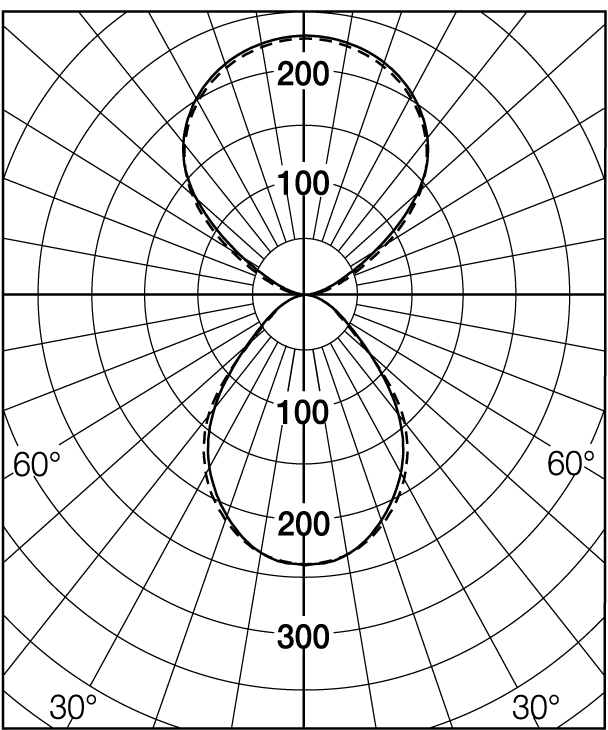

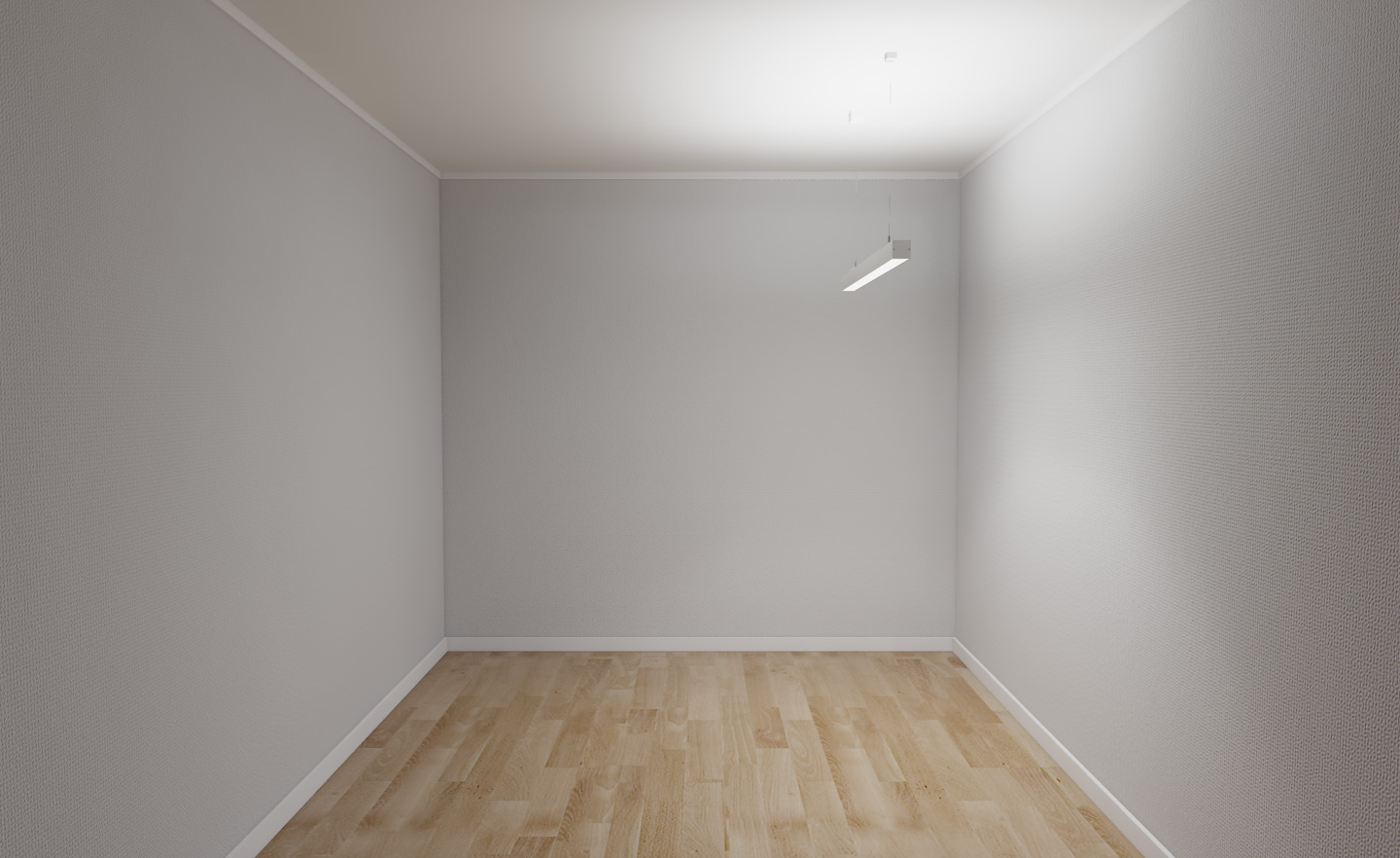

Suspended or ceiling-mounted workplace luminaire with direct or direct/indirect light. Delta louvres provide high efficiency and optimal lighting comfort. Single or continuous installation.

Installation

Single or continuous installation via wire suspension or surface mounted. Installation via wire suspension requires wire brackets which provide flexible c/c, see accessories. Can also be wall mounted with special brackets, see Accessories.

Connection

The luminaire is equipped with an access hole for cabling on the top. A special short end with cable entry is used for a surface mounted mains cable, see Accessories. The luminaire unit is equipped with a through-wiring cable (5x1.5 mm²) and a snap-in connection in each end-cap. In a continuous installation, the luminaire row should always begin with a start luminaire. The illuminated corners can be used as a start luminaire and are equipped with through-wiring and quick connection in one end. If creating a closed system one of the corner needs to be used as a start.

Design

Luminaire body enameled in white (RAL 9016 G40) alternatively black (RAL 9005 G30) or natural anodised extruded aluminium finish. The indirect light is covered by an opal film which generates a wide beam and acts as a dust cover. End caps are included in the Start- and Single-luminaire.

Louvre

Delta – microprism louvre in acrylic (PMMA.

Emergency lighting

There is a unit with integrated emLED available for Notor 65, see Accessories.

Dimming

CLO (Constant Light Output) and DALI/Phase-pulse control as standard.
Phase pulse control is available with Push Dim and Pull-cord dimming.

e-Sense Active – PIR sensor with presence and daylight control via DALI.

Organic Response – PIR sensor with presence and daylight control. All luminaires have master/slave functionality with IR communications.

Unit for Organic Response lighting control ordered separately, see accessories. The Organic Response unit is connected as a start luminaire, with a maximum of 2 luminaires connected to each side. To include end-caps, one of the luminaires should be a start luminaire and the other continuous. See assembly instructions for more information.

Accessories

Assembly fittings and supplementary components, see Accessories.

Miscellaneous

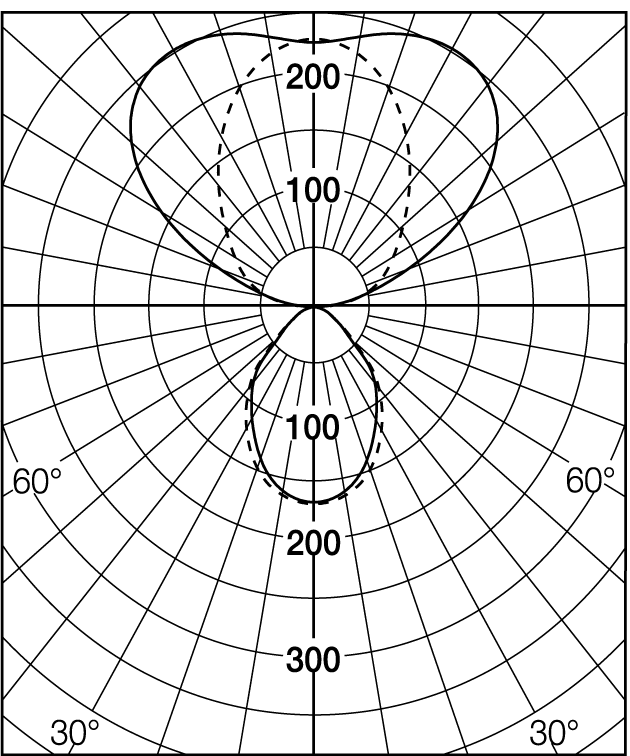

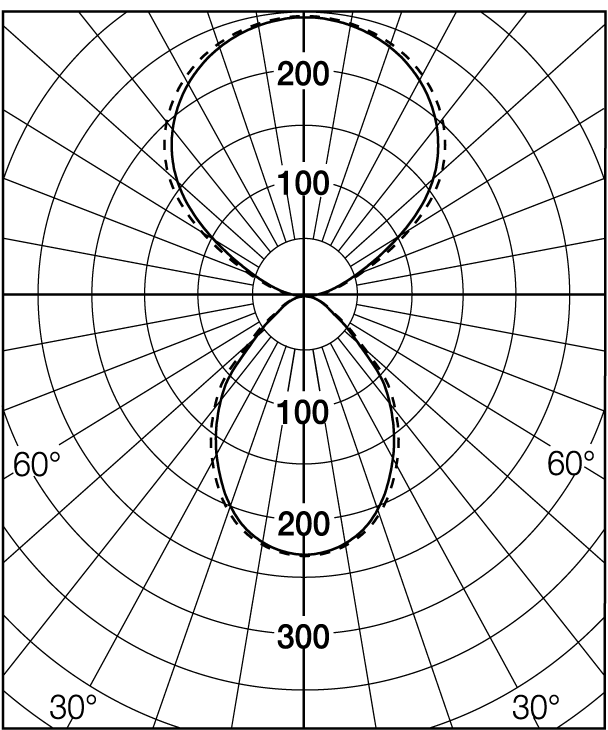

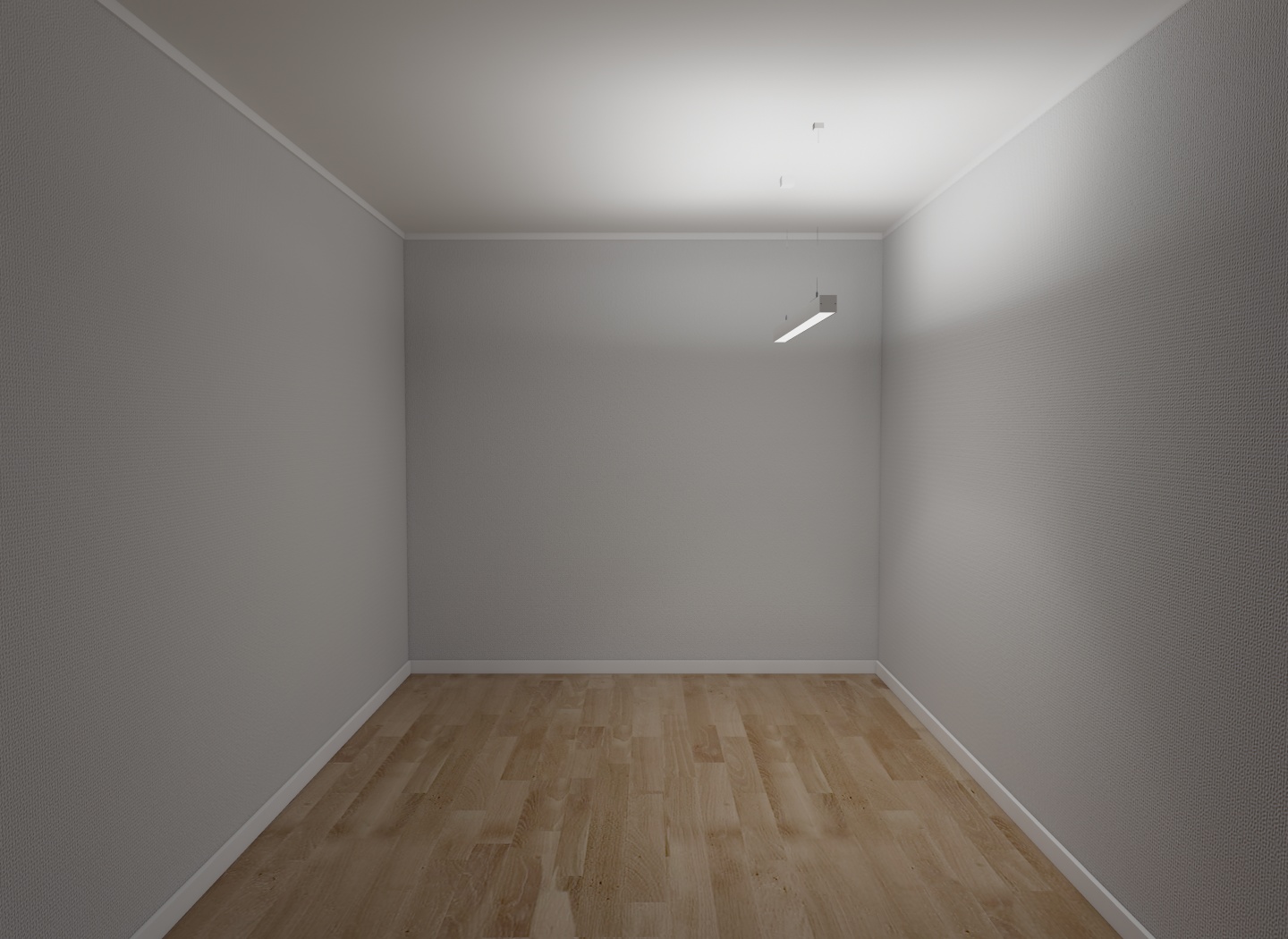

For 1200 30/70, 1200 Tunable white direct/indirect and 1700 direct/indirect, there are two DALI addresses per luminaire. For 2400 direct/indirect luminaires, there are also two DALI addresses per luminaire, where one DALI address controls the direct/indirect light on the first 1200 module and the other DALI address controls the other 1200 module.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

The LEDs are protected against contact.

To calculate how many luminaires and accessories you will need to complete a run, please use our configurator.

Media

Organic Response – How it works

Notor 65

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Start configuration

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
emLED-unit Continuous luminaire emLED-unit, 270 mm 92678
Spacers Spacers 600 mm 92665
Spacers Spacers 200 mm 92661
Spacers Spacers 600 mm 92664
Spacers Spacers 200 mm 92660
Spacers Spacers 1200 mm 92671
Spacers Spacers 400 mm 92663
End-cap Notor 65 End-cap with hole for surface mounted cable/each. White. 92677
Spacers Spacers 1200 mm 92670
Spacers Spacers 800 mm 92666
End-cap Notor 65 End-cap with hole for surface mounted cable/each. Anodised. 92676
emLED-unit Continuous luminaire emLED-unit, 270 mm 92679
Spacers Spacers 1000 mm 92669
Wall bracket Notor 65 Wall bracket 1 piece with terminal block, 200 mm. White. 92686
Spacers Spacers 1000 mm 92668
Wall bracket Notor 65 Wall bracket 1 piece with terminal block, 200 mm. Anodised. 92685
Spacers Spacers 800 mm 92667
Wall bracket Notor 65 Wall bracket 1 piece, 200 mm. White. 92675
Spacers Spacers 400 mm 92662
Wall bracket Notor 65 Wall bracket 1 piece, 200 mm. Anodised. 92674
Support rail (cat. no./pair) L=600/650, section: 15, max. load: 75N/pair 90015
Support rail (cat. no./pair) L=600/625, section: 25, max. load: 75N/pair 94067
Wire suspension for support rails L: 1,5m Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 91426
Support rail (cat. no./pair) L=200/1250, section: 15, max. load: 120/30N/pair 90016
Support rail (cat. no./pair) L=1200/1250, section: 25, max. load: 120/30N/pair 94068
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, transparent mains cable (96382+96390) 95355
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, white mains cable/each 96388
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) 95356
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup, white mains cable/each 96374
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) 95364
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup, transparent mains cable/each 96378
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) 95365
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, transparent mains cable/each 96379
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large, white mains cable (96370+96374) 95362
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, white mains cable/each 96376
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) 95353
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup, white mains cable/each 96386
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) 95361
Wire suspension for continuous installation L: 1,4m Large round ceiling cup for T-bars 25 mm/each 96385
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large, transparent mains cable (96370+96378) 95363
Wire suspension for continuous installation L: 1,4m Large square ceiling cup for T-bars 25 mm/each 96373
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) 95360
Ceiling Cup Round small wire Wire suspension for continuous installation L: 1,4m Small round ceiling cup/each 96382
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, transparent mains cable (96371+96378) 95359
Wire suspension for continuous installation L: 1,4m Large square ceiling cup/each 96371
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, white mains cable (96371+96374) 95358
Wire suspension for continuous installation L: 1,4m Small round ceiling cup for T-bars 25 mm/each 96384
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) 95357
Wire suspension for continuous installation L: 1,4m Small square ceiling cup for T-bars 25 mm/each 96372
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) 95352
Wire suspension for continuous installation L: 1,4m Small square ceiling cup/each 96370
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, white mains cable (96383+96386) 95350
Wire suspension for continuous installation L: 1,4m Large round ceiling cup/each 96383
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup, transparent mains cable/each 96390
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, transparent mains cable/each 96391
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, transparent mains cable (96383+96390) 95351
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, white mains cable (96382+96386) 95354
Wall socket Wall socket Notor 65/pair 92673
IR dongle for Organic Response IR dongle for Organic Response equipped luminaire. 86279
Wire bracket incl. friction locks Wire bracket/pair 92684
Wire bracket incl. friction locks Wire bracket/pair 92683
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) 95372
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup, white mains cable/each 96387
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) 95381
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, transparent mains cable/each 96393
Wire bracket incl. friction locks Wire bracket/pair 92682
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) 95380
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, white mains cable/each 96389
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large, transparent mains cable (96370+96380) 95379
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup, white mains cable/each 96375
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large, white mains cable (96370+96375) 95378
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup, transparent mains cable/each 96380
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, transparent mains cable/each 96381
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) 95377
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, white mains cable/each 96377
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) 95376
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup, transparent mains cable/each 96392
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, transparent mains cable (96371+96380) 95375
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, white mains cable (96371+96375) 95374
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389) 95368
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) 95373
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, white mains cable (96382+96387) 95370
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, transparent mains cable (96383+96392) 95367
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, transparent mains cable (96382+96392) 95371
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, white mains cable (96383+96387) 95366
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393) 95369
Ceiling bracket in chrome with wire Wire suspension with ceiling bracket in chrome, L=1.5 m/pair 91696
Cutters Cutters, each 94248

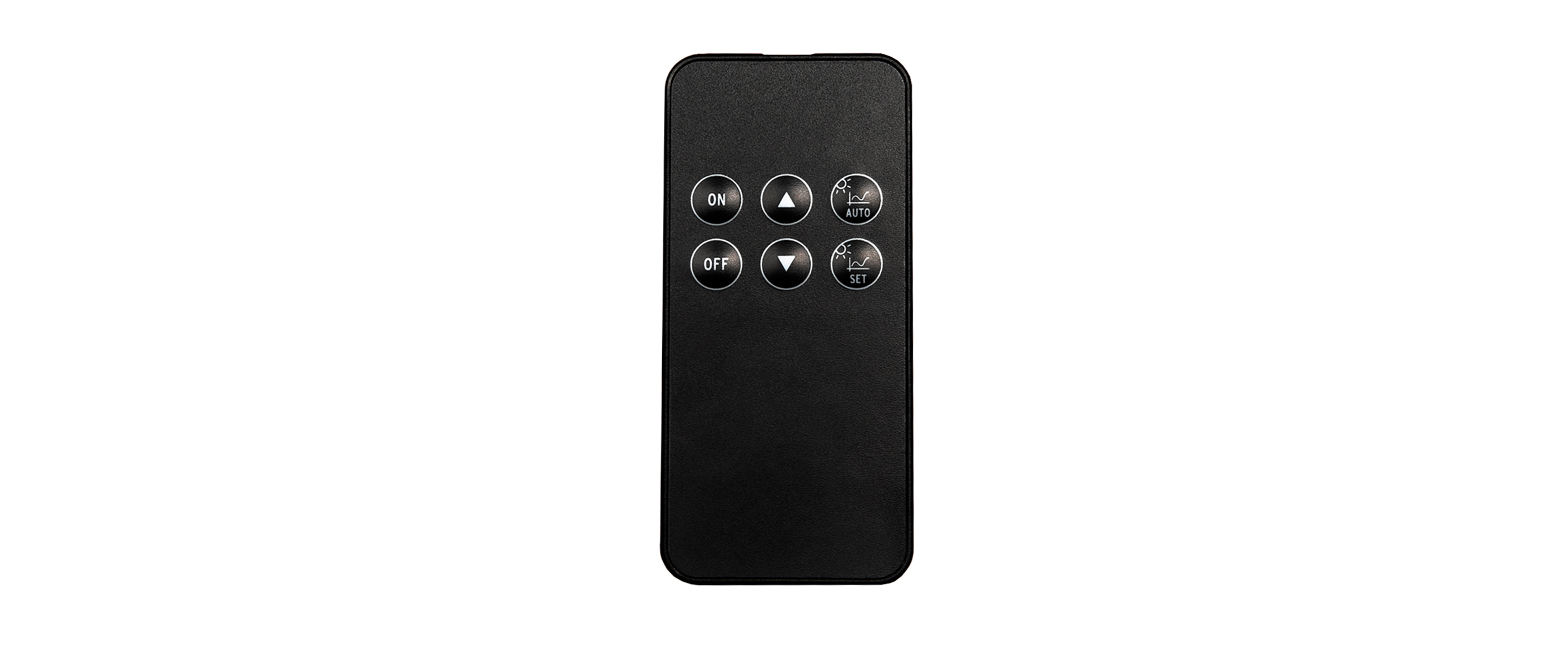

Remote control Remote control e-Sense Active 86415

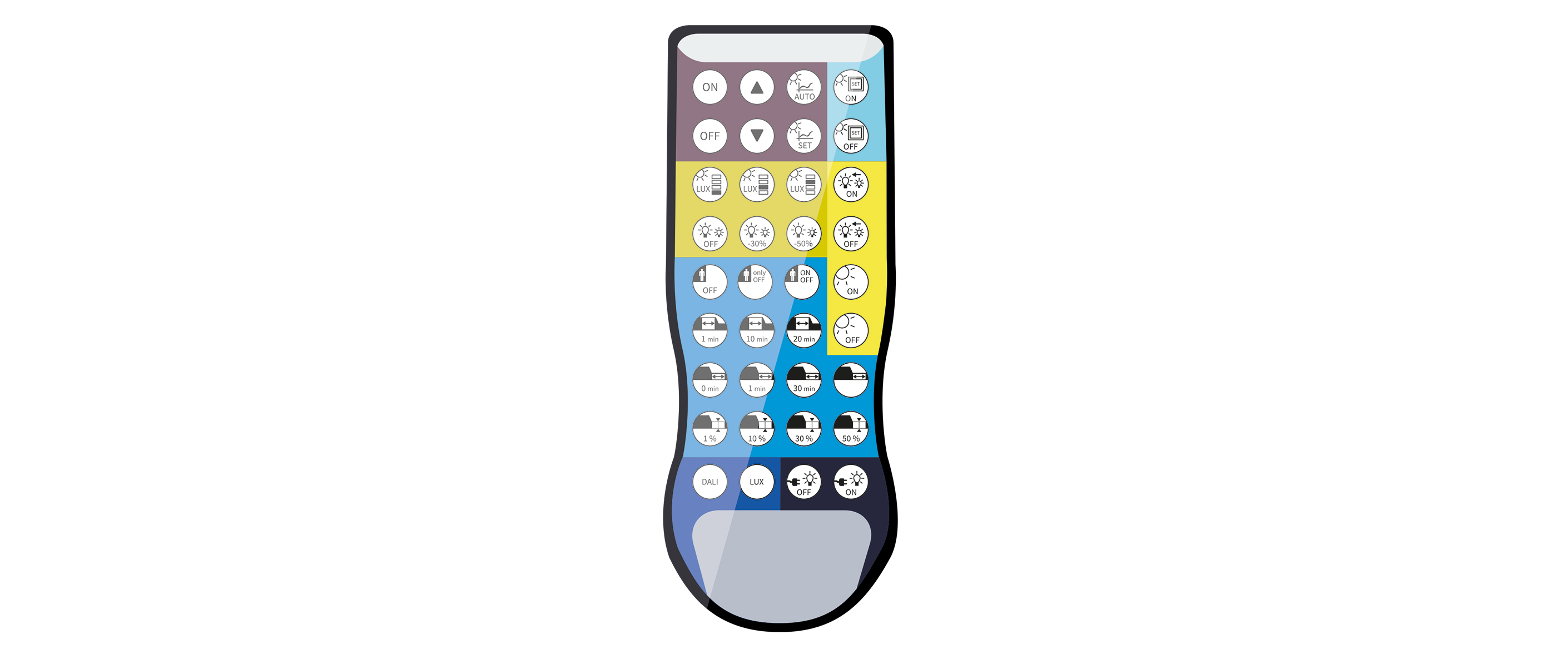

Programming remote control e-Sense Active Programming remote control 86414
Organic Response I/O box I/O box with potential-free 16A relay for controlling external units. 86413
Organic Response-unit Notor 65 Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI in both directions. 200 mm. 92688
Organic Response-unit Notor 65 Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the left and breaks DALI to the right. 200 mm. 92690
Organic Response-unit Notor 65 Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the left and breaks DALI to the right. 200 mm. 92693
Organic Response-unit Notor 65 Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the right and breaks DALI to the left. 200 mm. 92692
Organic Response-unit Notor 65 Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the right and breaks DALI to the left. 200 mm. 92689
Organic Response-unit Notor 65 Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI in both directions. 200 mm. 92691
Organic Response IoT Gateway Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. 86296
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, white 86416
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, white 86417
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, labeled, white 86437
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, labeled, white 86436
Organic Response I/O box I/O box with potential-free 8A relay for controlling external units. 86433
Notor 65 Delta Opal all
