ComboLINE Profile
21783 ComboLINE 21783A wall, ceiling and pendant system for both spotlights and linear luminaires. Compose your own solution or purchase a ready-made system, see ComboLINE Set. Single or series installation.
Installation
Wall/ceiling mounted or suspended pendant, see Accessories. Single or series installation. The luminaires click easily into the profile system.
Connection
The 1-spot, 3-spot and linear luminaires click into the profile system. Cover plates are available which can be inserted to conceal any open parts in the profile system once the luminaires have been installed. The basic luminaire comes with a 2.5 m connection cable (5x0.75 mm2 excl. plug) as standard. The series units are equipped with a quick-connector at each end.
Design
Standard white (RAL 9016) or black (RAL 9005).
Light distribution
Spotlights with narrow or medium light distribution. Linear luminaire with wide light distribution for general lighting.
Dimming
DALI/Phase-pulse control as standard. Dimming range 15-100%.
Accessories
See Accessories.
LED-information
Built-in DALI driver in the profile system.
ComboLINE
ComboLINE is our latest retail system for wall-mounted, ceiling-mounted and pendant solutions for both spotlights and linear luminaires. Options for composing your own solution or purchasing a ready-made system provide room for...
More about the family ComboLINE
Document
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Ceiling cup | Large round ceiling cup without wire and mains cable/each | 96394 |
|
Ceiling cup | Large round ceiling cup without wire and mains cable for T-bars 25 mm/each | 96395 |
|
Ceiling cup | Large square ceiling cup without wire and mains cable/each | 96398 |
|
Ceiling cup | Large square ceiling cup without wire and mains cable for T-bars 25 mm/each | 96399 |
|
Ceiling cup | Small round ceiling cup/each without wire. | 96396 |
|
Ceiling cup | Small round ceiling cup for T-bars 25 mm/each without wire. | 96397 |
|
Ceiling cup | Small square ceiling cup/each without wire. | 96400 |
|
Ceiling cup | Small square ceiling cup for T-bars 25 mm/each without wire. | 96401 |
|
Wire | Wire with ball, 4.0 m. | 96368 |
|
|
Wire | Wire with ball, 3.0 m. | 96367 |
|

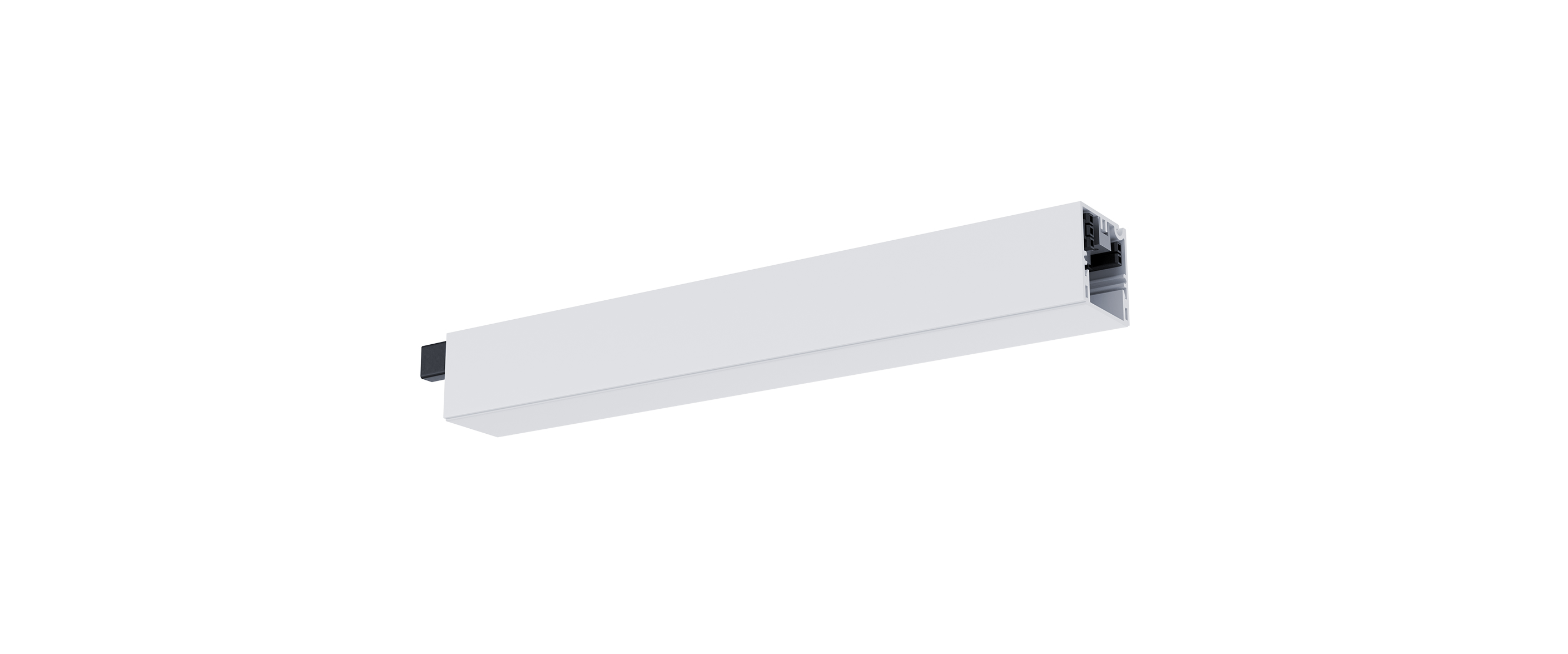

Dummy unit ComboLINE | Dummy unit 290 mm with cover, white | 92760 |
|

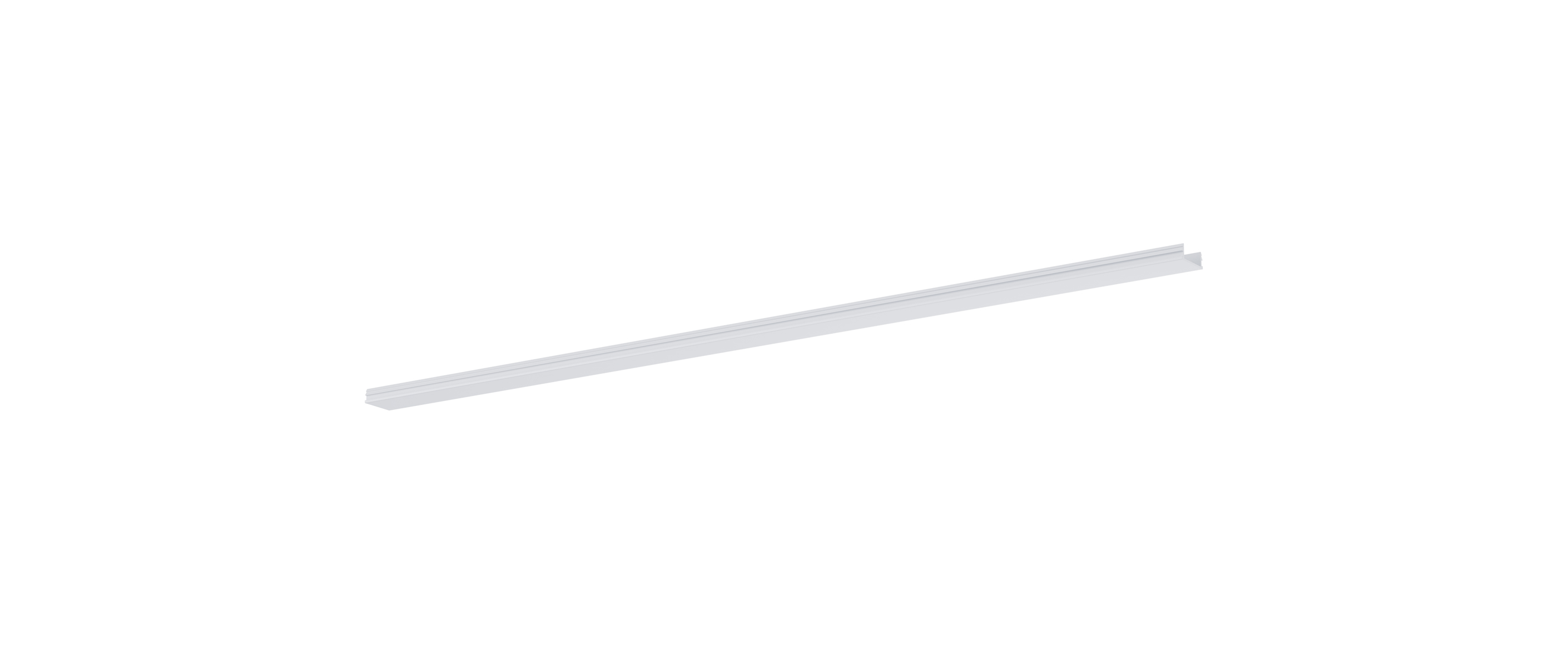

Cover ComboLINE | Cover plate 800mm, white | 92758 |
|
Cover ComboLINE | Cover plate 290mm, black | 92763 |
|
Cover ComboLINE | Cover plate 1255mm, black | 92757 |
|

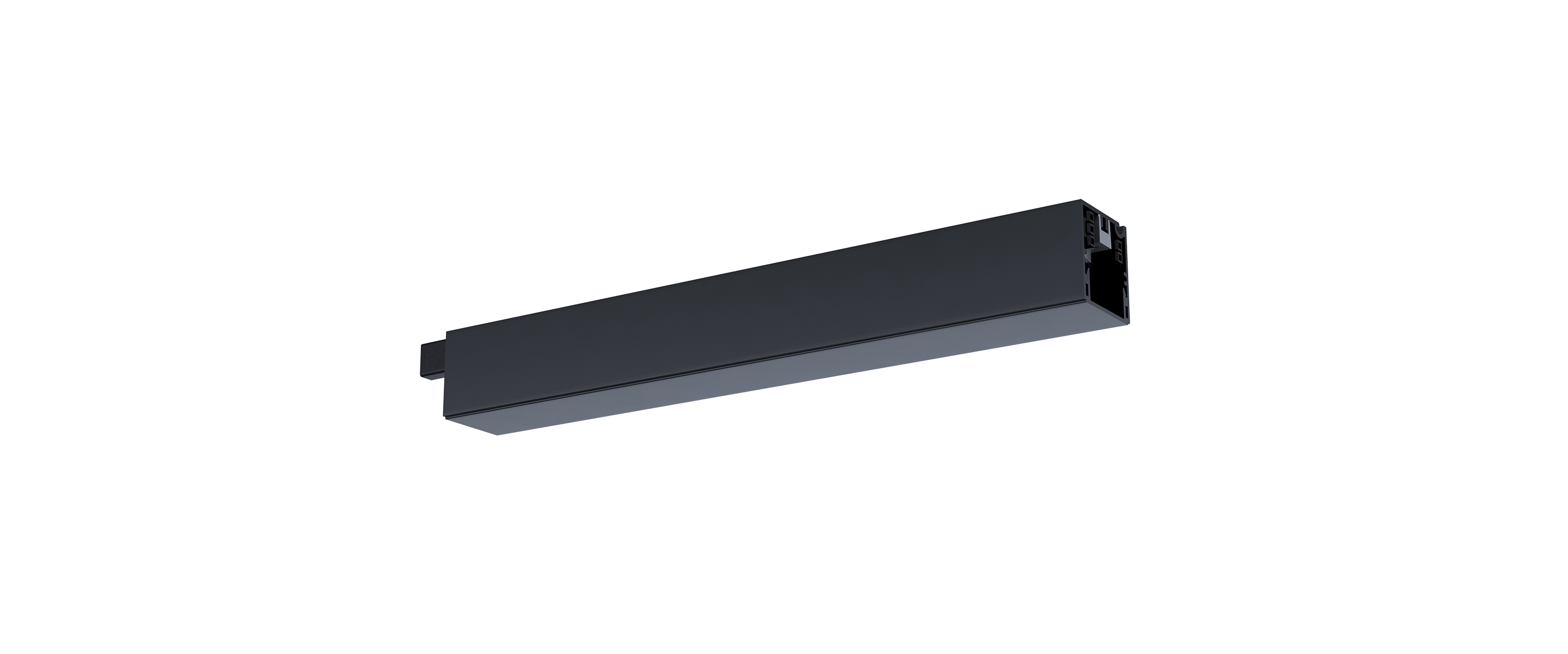

Dummy unit ComboLINE | Dummy unit 290 mm with cover, black | 92761 |
|

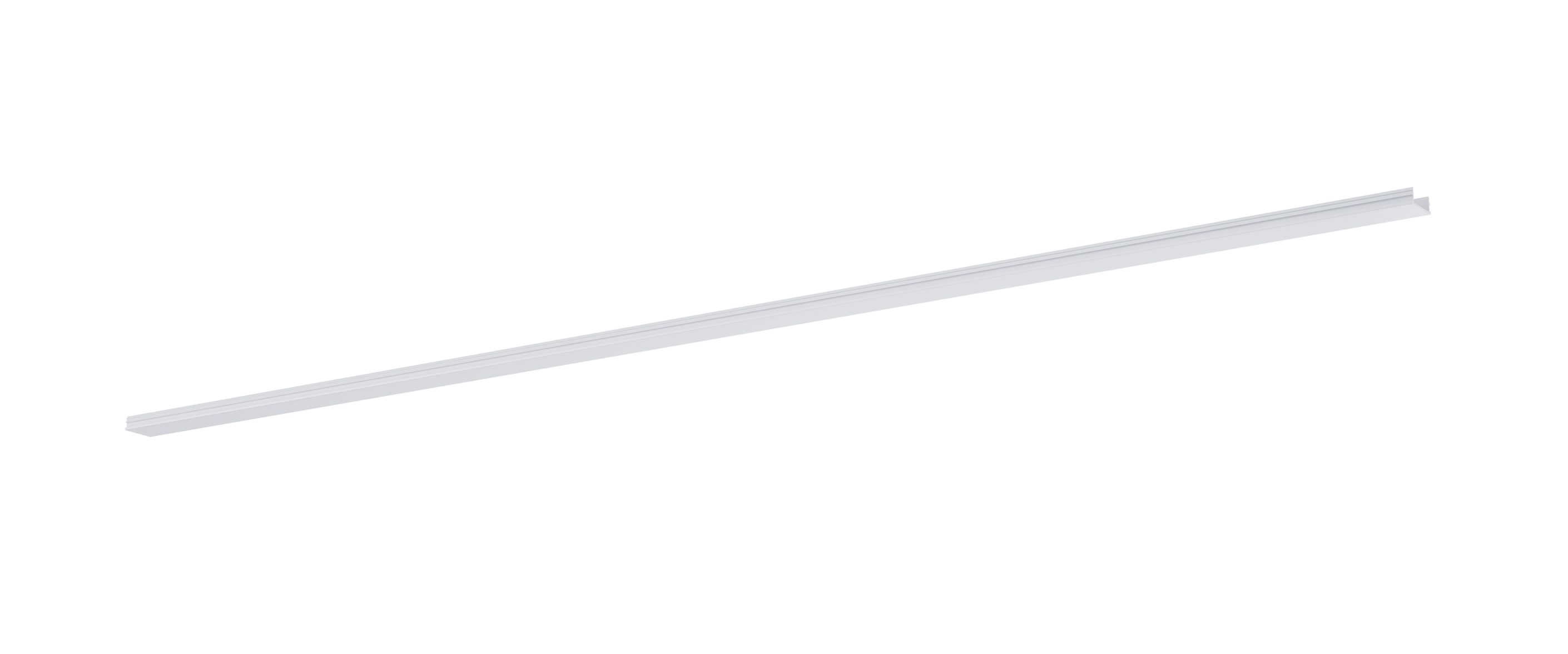

Cover ComboLINE | Cover plate 1255mm, white | 92756 |
|
Cover ComboLINE | Cover plate 800mm, black | 92759 |
|

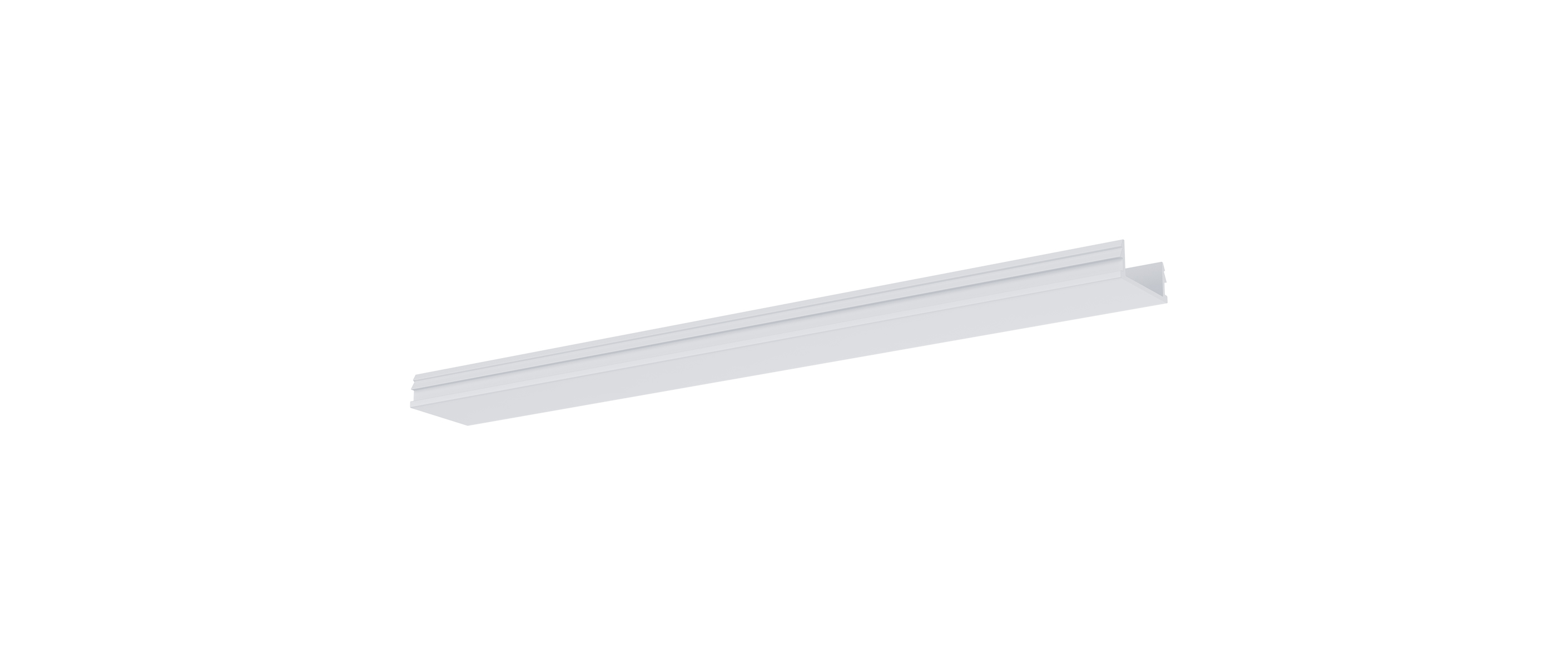

Cover ComboLINE | Cover plate 290mm, white | 92762 |
|
e-Sense Stage RTC Backup | e-Sense Stage Stand-Alone Control Box RTC Backup | 99816 |
|
|
e-Sense Stage Stand-alone DALI | e-Sense Stage Stand-Alone Control Box DALI | 99812 |
|
|
e-Sense Stage Relay | e-Sense Stage Stand-Alone Control Box Relay | 99814 |
|
Xpress push button panel | Xpress push button panel, white. | 82172 |
|
Xpress push button panel | Xpress push button panel, black. | 82173 |
|
|
Xpress push button panel | Xpress push button panel with long range, white. | 82178 |
|
|
Xpress push button panel | Xpress push button panel with long range, black. | 82179 |
