ComboLINE Luminaires
12119 ComboLINE 12119

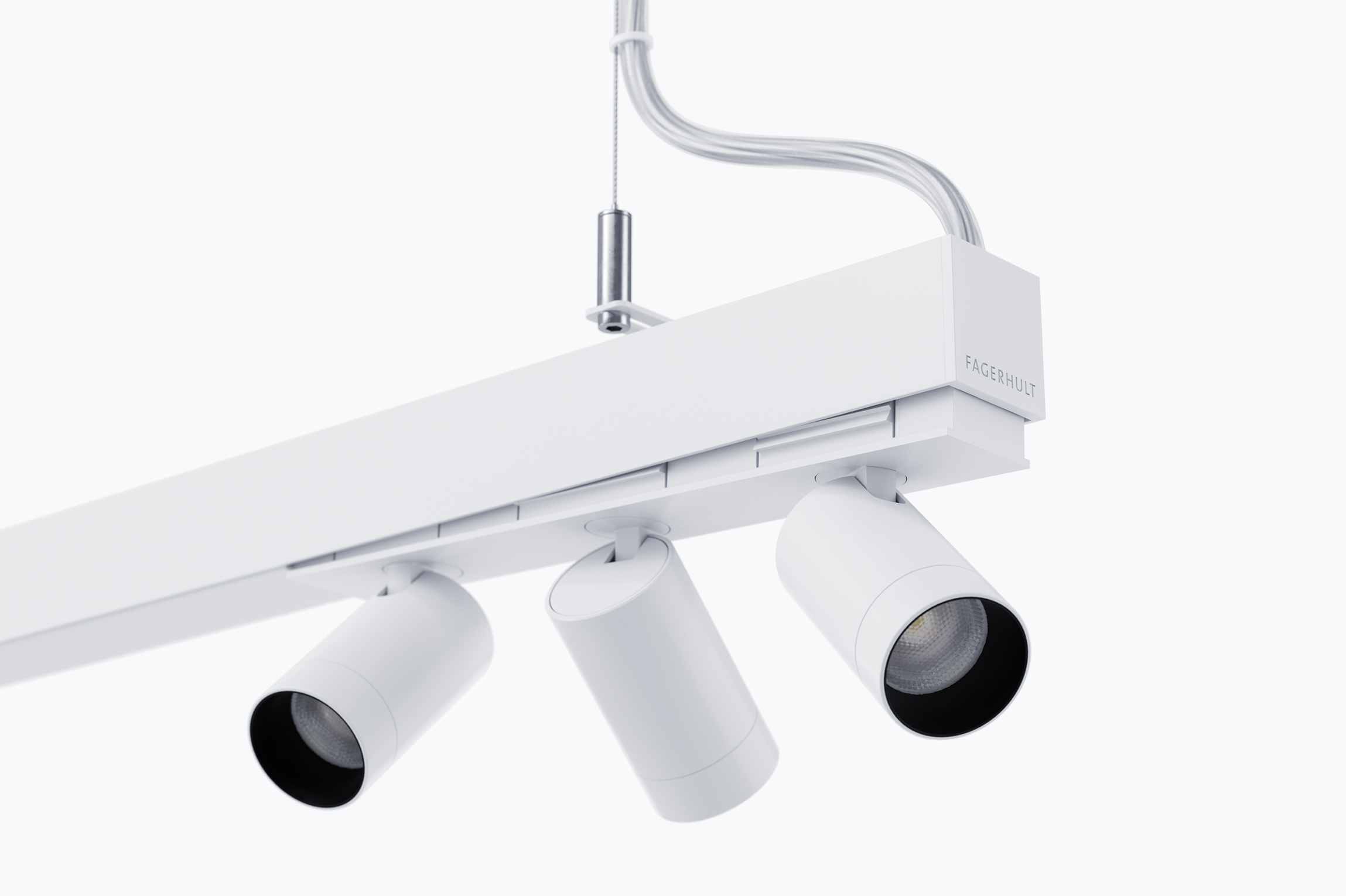

A wall, ceiling and pendant system for both spotlights and linear luminaires. Compose your own solution or purchase a ready-made system, see ComboLINE Set. Single or series installation.
Installation
Wall/ceiling mounted or suspended pendant. Single or series installation. The luminaires click easily into the profile system.
Connection
The 1-spot, 3-spot and linear luminaires click into the profile system. Cover plates are available which can be inserted to conceal any open parts in the profile system once the luminaires have been installed. The basic luminaire comes with a 2.5 m connection cable (5x0.75 mm2 excl. plug) as standard. The series units are equipped with a quick-connector at each end.
Design
Standard white (RAL 9016) or black (RAL 9005).
Light distribution

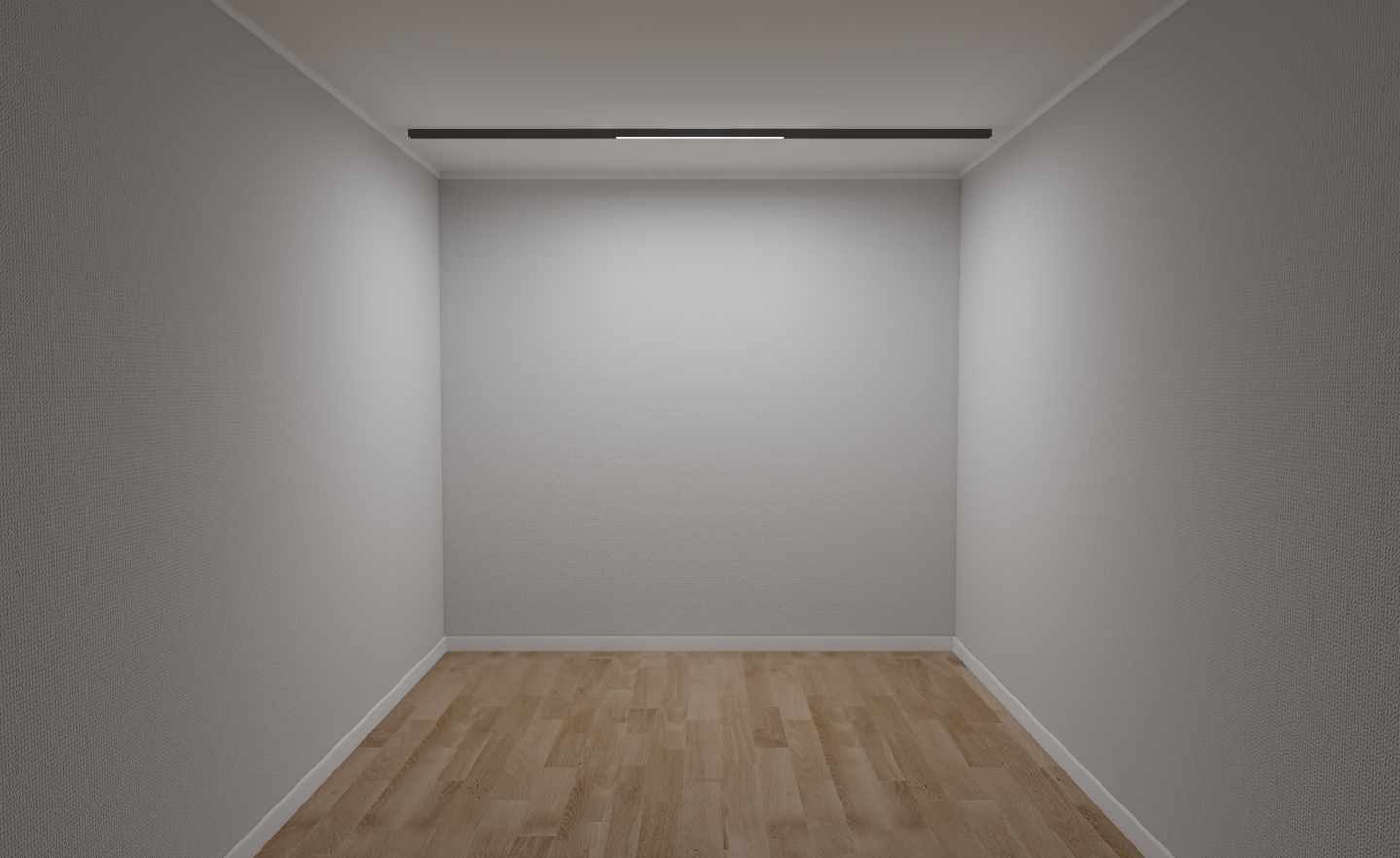

Spotlights with narrow or medium light distribution. Linear luminaire with wide light distribution for general lighting
Dimming
DALI/Phase-pulse control as standard. Dimming range 15-100%.
Accessories
See Accessories.
LED-information
Built-in DALI driver in the profile system.
Media
ComboLINE
ComboLINE is our latest retail system for wall-mounted, ceiling-mounted and pendant solutions for both spotlights and linear luminaires. Options for composing your own solution or purchasing a ready-made system provide room for...
More about the family ComboLINE
Document
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Baffle ComboLINE | Baffle ComboLINE, gold | 92764 |
|
e-Sense Stage RTC Backup | e-Sense Stage Stand-Alone Control Box RTC Backup | 99816 |
|
|
e-Sense Stage Stand-alone DALI | e-Sense Stage Stand-Alone Control Box DALI | 99812 |
|
|
e-Sense Stage Relay | e-Sense Stage Stand-Alone Control Box Relay | 99814 |
|
Xpress push button panel | Xpress push button panel, white. | 82172 |
|
Xpress push button panel | Xpress push button panel, black. | 82173 |
|
|
Xpress push button panel | Xpress push button panel with long range, white. | 82178 |
|
|
Xpress push button panel | Xpress push button panel with long range, black. | 82179 |
