Appareo Circular
8479 Appareo 8479
A suspended workplace luminaire with side-emitting LEDs that produce direct/indirect light. Appareo combines uncompromising design with good ergonomics.
Installation
Wire suspension (4 m) with ceiling bracket and friction lock, is included with the luminaire. External ballast box is mounted directly to ceiling or placed loosely above ceiling.
Connection
Luminaire is connected via remote LED driver, 230 V. Cable entry on top or through the knock-out in the side. Snap-in terminal block 5x2.5 mm², 1-phase throughwiring possible. Supplied with a 3 m white fabric cord or transparent mains cable between luminaire and external ballast box.
Design
Luminaire body in cast aluminium. The luminaire is enamelled in black structured (RAL 9005) or white structured (RAL 9016). Ballast box in plastic.
Louvre
Delta – microprism louvre in acrylic (PMMA) with good optical characteristics.
Dimming
Luminaires with DALI/phase pulse control have CLO (Constant Light Output) as standard.
Designed by
Howl Design Studio
Miscellaneous
Appareo has side-emitting LEDs, as a result the luminaire’s acrylic diffuser is completely transparent when switched off and provides an evenly luminated surface when lit. The distance between the luminaire and the ballast can be increased to 3 metres if required.
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Ra (CRI) 90 on request.
Media

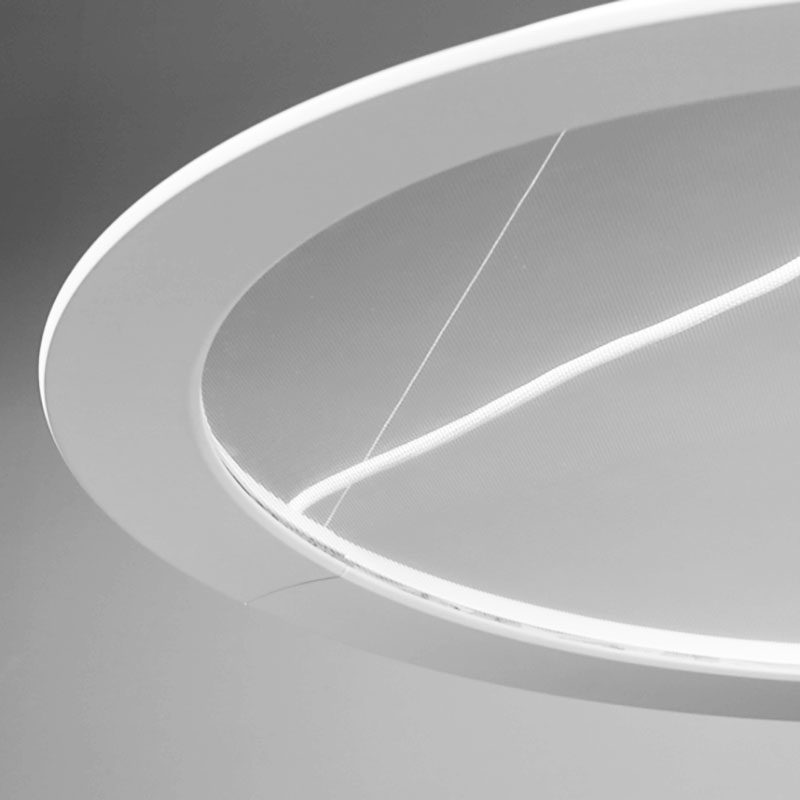

When switched off, the diffuser is completely transparent.

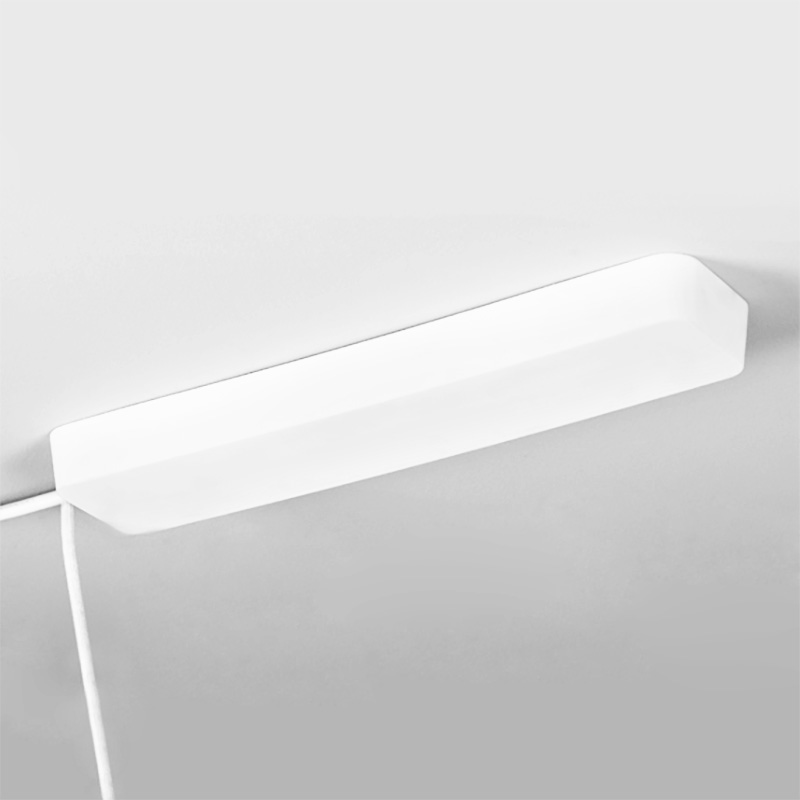

Ballast boxes can be placed above ceilings or surface mounted directly to the ceiling.
Installation clips
Appareo

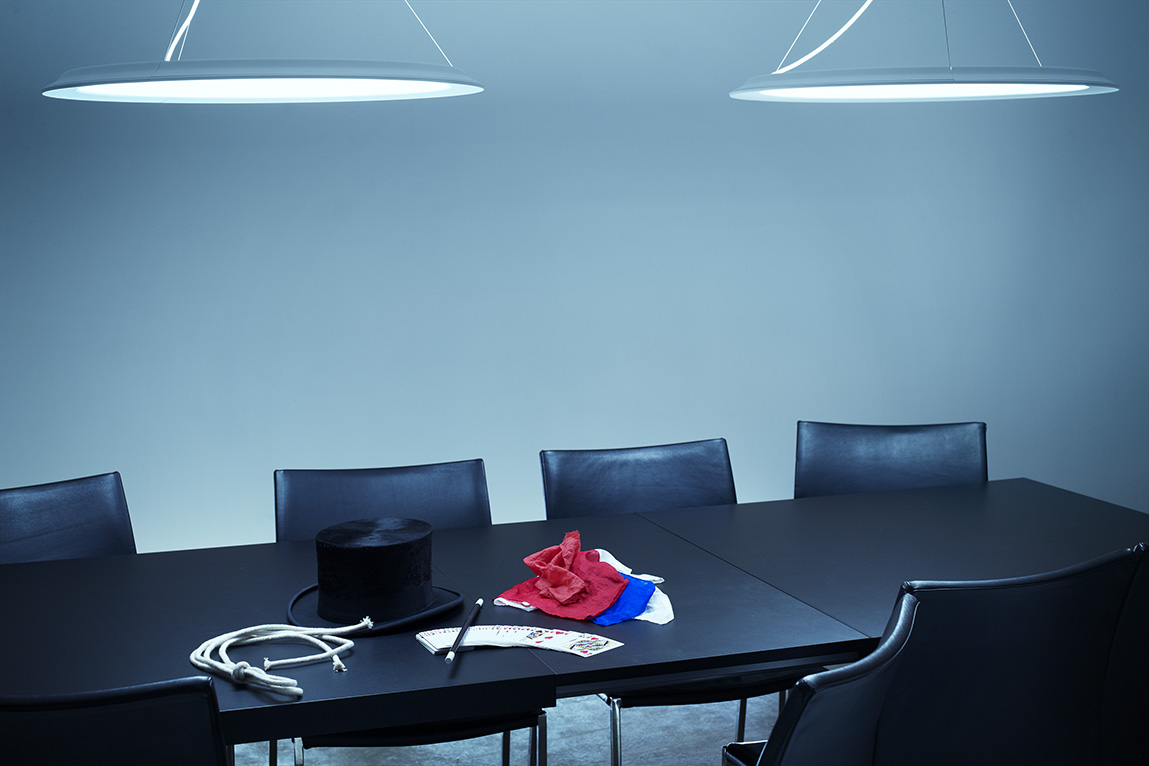

The luminaire is lit but where is the light source? Appareo is a suspended luminaire which maximises the design flexibility offered by LED’s – without compromising on the requirements for efficiency and ergonomics.
The starting...
More about the family AppareoOther products
Document
Specification
Filter
Showing 6 of 0 articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diamater, mm | Louvre | Light distribution | Light control | CLO function active | Miscellaneous | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diamater, mm | Louvre | Light distribution | Light control | CLO function active | Miscellaneous | |
| 53760-402 | 37 | 5018 | 3000 | White | 675 | Delta | 40/60 | DALI/Phase-pulse | Yes | White power cable | |
| 53761-402 | 39 | 5018 | 3000 | Black | 675 | Delta | 40/60 | DALI/Phase-pulse | Yes | White power cable | |
| 53762-402 | 37 | 5163 | 4000 | White | 675 | Delta | 40/60 | DALI/Phase-pulse | Yes | White power cable | |
| 53763-402 | 39 | 5163 | 4000 | Black | 675 | Delta | 40/60 | DALI/Phase-pulse | Yes | White power cable | |
| 53764-402 | 37 | 5163 | 4000 | White | 675 | Delta | 40/60 | DALI/Phase-pulse | Yes | Transparent power cable | |
| 53765-402 | 39 | 5163 | 4000 | Black | 675 | Delta | 40/60 | DALI/Phase-pulse | Yes | Transparent power cable |
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Support rail (cat. no./pair) | L=1200/1250, section: 25, max. load: 120/30N/pair | 94068 |
|
|
Support rail (cat. no./pair) | L=200/1250, section: 15, max. load: 120/30N/pair | 90016 |
|
|
Support rail (cat. no./pair) | L=600/625, section: 25, max. load: 75N/pair | 94067 |
|
|
Support rail (cat. no./pair) | L=600/650, section: 15, max. load: 75N/pair | 90015 |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 |
