45100-20008 Sentra
Documents
Specification
92751Design
Installation
3-phase track
Module
1200
Light distribution
Asymmetrical
Louvre
Lens
Colour
White
Light data & performance
Lumen output
7105
lm/W
140
CCT, K
3000
CRI
80
SDCM
3
Melanopic DER
0.450
Lumen maintenance 50 000 h
L91
Lumen maintenance 75 000 h
L86
Lumen maintenance 100 000 h
L82
LED driver, h/max failure %
100000/10
Energy class, LED module
C
Controls & connectivity
Light control
On/off
Driver brand
Tridonic
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
0, 50, 60
Protective class
1
IP rating
20
System Wattage
51
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
MCB B10A, pcs
10
MCB B16A
16
MCB C10A
16
MCB C16A
26
THD, %
10
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Power factor, 100 %
0.98
Dimensions
Length, mm
1213
Width, mm
105
Height, mm
96
Weight, kg
3.7
Dimensions
Light distribution

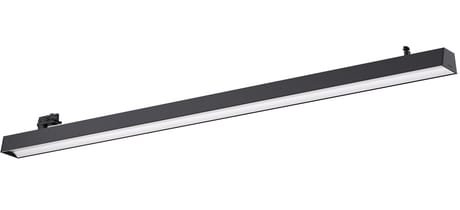

Sentra
The Sentra is a classically designed linear luminaire intended for larger stores such as hypermarkets and department stores. With its newly developed rounded inner profile, it provides a soft, pleasant light that can illuminate...
More about the family Sentra
