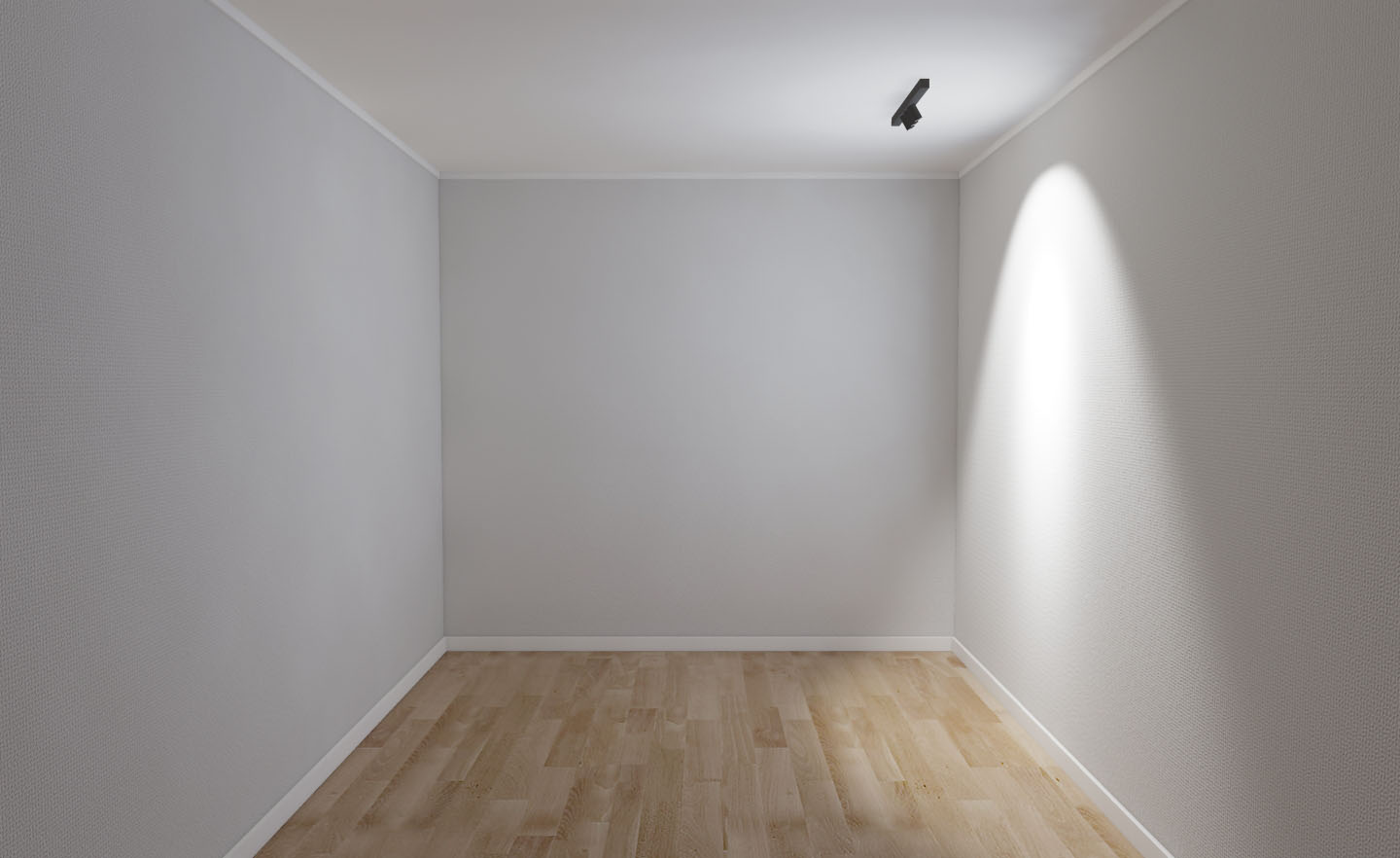

Notor 36 Spot End Ceiling white
Notor 36 Opal 1200 Single Ceiling white
Notor 36 Ceiling L Right Cont white

Notor 36 ceiling Opal

Fagerhult Configure See items

Luminaire with Opal louvre for surface-mounted installation, individually or in a system. Choose between linear modules and shapes X, T, L, ceiling-to-wall and spotlight modules to freely create the system that best suits your project.

Adapt and optimise Notor 36 by using Fagerhult Configure. For example, choose among colour temperatures, optics, luminous fluxes and various accessories. The linear luminaires can be used as single luminaires or in systems. The other shapes are in the system configuration. All choices are saved in a product datasheet, which can be downloaded together with unique light data files. The articles listed below are examples.

Installation

Keyhole slots permit individual or system surface-mounted installation.

Connection

For permanent connection with 230 V; built-in LED driver in luminaire. Single and start luminaires in systems are equipped with a 1.5 m connection cable 5 x 0.75 mm². System units are equipped with through-wiring (5 x 1.5 mm²) and a snap-in terminal block between the luminaire units. Use Configure for options on the type of connection cable and cable entry.

Design

Body finished in white (RAL 9016), silver (RAL 7035 metallic) or black (RAL 9005). End caps included with start/single luminaires.

Louvre

Opal – frosted acrylic diffuser (PMMA).
Spot module – 3 spotlights with aluminium reflector.

Light distribution

Direct.

Dimming

CLO (Constant Light Output) and DALI/phase pulse control as standard. CLO means that the luminaire provides the same amount of light for the duration of its service life.
Organic Response – PIR sensor with presence and daylight control. Mounted in a separate unit. All luminaires have master/slave functionality with IR communications. Either cont. or end. A sensor handles up to 4 luminaires. See installation instructions for more information.

LED-information

The LEDs are protected from contact.

Notor 36

Notor 36

Notor 36 is a high-performance luminaire family with a Scandinavian design style and great possibilities. With its elegant shape and square profile (36 x 36 mm), symmetry and unique appearance, it makes light a part of the...

More about the family Notor 36

Other products

Document

Environmental Product Declaration (EPD)

Instruction of use ceiling to wall

Instruction for use ceiling

Overview Notor 36

Instruction for use L

Instruction for use T / X

Installation

DWG

FBX

3Ds

Max

Revit

Customise with Fagerhult Configure

Adapt and optimise the luminaire or create system in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire or create system
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Configure single Configure system

Specification

The articles listed below are examples.
Use Fagerhult Configure to adapt and optimise your own version of Notor 36 by selecting CRI, colour temperatures, optics, luminous flux, accessories, etc.

Filter

Showing 19 of 19 articles

Art.no.System WattageLumen outputCCT, KColourLength, mmWidth, mmHeight, mmInstallationLight distributionLight controlCLO function activeMiscellaneous
Art.no.System WattageLumen outputCCT, KColourLength, mmWidth, mmHeight, mmInstallationLight distributionLight controlCLO function activeMiscellaneous
16086-20017 46 5600 4000 White 2488 36 36 Single Direct DALI Yes HL
16086-20028 24 2800 4000 White 1249 36 36 Single Direct DALI Yes HL
16086-20030 15 1800 4000 White 1249 36 36 Single Direct DALI Yes LL
16086-20031 30 3600 4000 White 2488 36 36 Single Direct DALI Yes LL
16086-20038 29 3600 4000 White 2523 36 36 Start Direct DALI Yes LL
16086-20039 29 3600 4000 White 2499 36 36 Continuous Direct DALI Yes LL
16086-20064 15 1800 4000 White 1260 36 36 Continuous Direct DALI Yes LL
16086-20067 15 1800 4000 White 1284 36 36 Start Direct DALI Yes LL
16086-20359 22 2566 4000 White 563 563 36 Continuous Direct DALI Yes L-module left. For open systems. HL
16086-20360 22 2566 4000 White 563 563 36 Continuous Direct DALI Yes L-module right. For open systems. HL
16086-20476 33 3965 4000 White 1125 581 36 Direct Yes T-module straight / left. For open systems. HL
16086-20477 22 2566 4000 White 563 36 563 Direct Yes Ceiling to wall. HL
16086-20503 18 1548 3000 White 603 36 107 Continuous Narrow Beam Spot-module.
16086-20504 18 1548 3000 White 603 36 107 Cont./End Narrow Beam Spot-module.
16086-20505 18 1404 3000 White 603 36 107 Continuous Medium Beam Spot-module.
16086-20506 18 1404 3000 White 603 36 107 Cont./End Medium Beam Spot-module.
16086-20575 43 5249 4000 White 1125 1125 36 Direct Yes X-module. For open systems. HL
16086-20576 33 3965 4000 White 1125 581 36 Direct Yes T-module left / right. For open systems. HL
16086-20577 33 3965 4000 White 1125 581 36 Direct Yes T-module straight / right. For open systems. HL

Filter

NameDescriptionArt.no.
NameDescriptionArt.no.
Organic Response sensor Notor 36 Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI in both directions. White, 400 mm, for ceiling Opal, continuous. 16086-20249
Organic Response sensor Notor 36 Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the left and breaks DALI to the right. White, 400 mm, for ceiling Opal, continuous. 16086-20574
Organic Response sensor Notor 36 Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the left and breaks DALI to the right. White, 400 mm, for ceiling Opal, end. 16086-20419
Organic Response sensor Notor 36 Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the right and breaks DALI to the left. White, 400 mm, for ceiling Opal, continuous. 16086-20396
e-Sense Active sensor Notor 36 Unit with PIR sensor with presence and daylight control. For connecting max. 5 Notor 36 DALI luminaires. White, 400 mm, for ceiling Opal, continuous. 16086-20395
e-Sense Active sensor Notor 36 Unit with PIR sensor with presence and daylight control. For connecting max. 5 Notor 36 DALI luminaires. White, 400 mm, for ceiling Opal, end. 16086-20190
