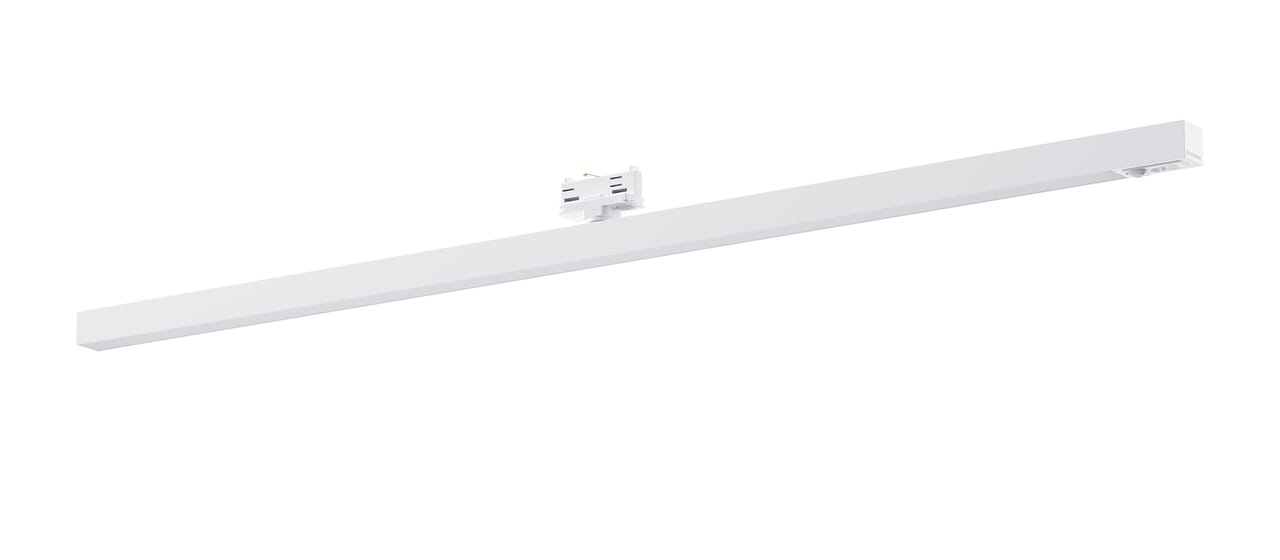

16088-20062 Notor 36 Track Opal

Installation

Single

Module

1200

Light distribution

Direct

Turn, °

355

Louvre

Opal

Colour

White

Lumen output

2800

CLO function active

Yes

CLO time, h

50000

lm/W

110

CCT, K

3000

CRI

80

SDCM

3

Melanopic DER

0.450

Lumen maintenance 50 000 h

L100

Lumen maintenance 75 000 h

L88

Lumen maintenance 100 000 h

L84

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Light control

Organic Response

Driver brand

Tridonic

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

25

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

Start W

26

End W

28

Average W

27

Stand by W

0.16

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

18

MCB B16A

31

MCB C10A

30

MCB C16A

51

THD, %

11

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.99

Length, mm

1326

Width, mm

36

Height, mm

67

Weight, kg

1.500
