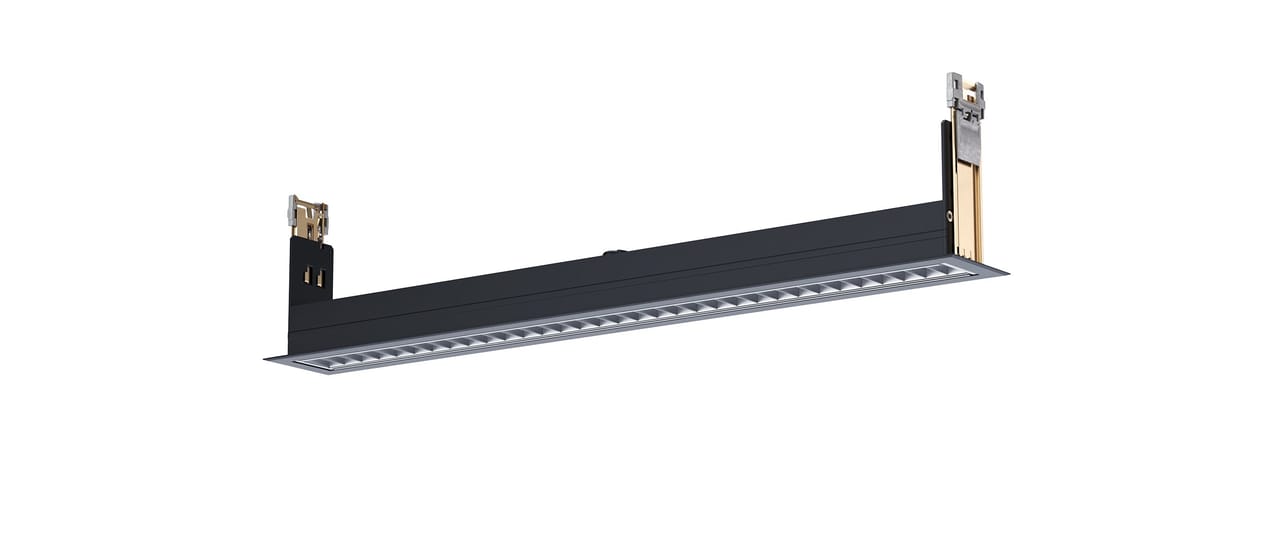

16087-20458 Notor 36 recessed Beta Opti Nano
Documents
Specification
98069Design
Installation
Single
Module
440
Light distribution
Direct
Louvre
Beta Opti Nano
Colour
Black
Light data & performance
Lumen output
1818
CLO function active
Yes
CLO time, h
50000
lm/W
114
CCT, K
3000
CRI
80
SDCM
3
Melanopic DER
0.450
Lumen maintenance 50 000 h
L100
Lumen maintenance 75 000 h
L86
Lumen maintenance 100 000 h
L81
LED driver, h/max failure %
100000/10
Energy class, LED module
C
Controls & connectivity
Light control
DALI
Driver brand
Tridonic
DALI generation/adress type
Dali-2/1xDT6
Power on last level
Yes
Corridor function
Yes
Switch control, max no.
25
AM
Yes
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
0, 50, 60
Protective class
1
IP rating
20
Start W
16
End W
18
Average W
17
Stand by W
0.2
Min. ambient temperature, °C
-20
Max. ambient temperature, °C
25
MCB B10A, pcs
22
MCB B16A
36
MCB C10A
36
MCB C16A
60
THD, %
8
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Power factor, 100 %
0.98
Dimensions
Length, mm
446
Width, mm
56
Height, mm
97
Weight, kg
0.6
Dimensions

Light distribution
Notor 36

Notor 36 is a high-performance luminaire family with a Scandinavian design style and great possibilities. With its elegant shape and square profile (36 x 36 mm), symmetry and unique appearance, it makes light a part of the...
More about the family Notor 36
