Multilume Re:Think Delta
81723 Multilume Re:Think 81723
A recessed workplace luminaire with a strong focus on sustainability. Body in Solid Board. Installation in ceiling with visible T-bars – VTB. Delta louvre provides efficient and optimal light comfort.
Installation
Recessed in suspended ceilings with visible T-bars, VTB 24 mm. Unventilated or ventilated building elements.
Connection
Connection in separate ballast box. Snap-in terminal block 3x1,5 mm² (x2), through-wiring possible. 5x1,5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector. The luminaire housing and driver are connected via a Quick Connection System.
Design
Solid Board luminaire body, hard recycled paper material. White visible surface. (RAL 9016).
Louvre
Delta – microprism louvre in UV stabil polystyrene.
Dimming
Organic Response – PIR sensor with presence and daylight control. All luminaires have master/slave functionality with IR communications.
Miscellaneous
IP 20. Luminaire body Class III. The supplied driver must be connected to protective earth. Fagerhult Plus luminaires are supplied with halogen-free mains cables. CLO (Constant Light Output) entails that the luminaire provides the same amount of light for the duration of its specified burn time.
Media
Fence - decorative accessory for recessed 600x600 luminaires. See more versions under Accessories.
Compago - decorative accessory for recessed 600x600 luminaires. See more versions under Accessories.
Multilume Re:Think
Multilume is our large family of recessed luminaires, which now have a new addition: Multilume Re:Think. With a body made entirely of hard cardboard, this lightweight luminaire is a step forward towards our sustainability promise ...
More about the family Multilume Re:ThinkOther products
Document
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Frame for surface mounting | Frame for surface mounting, H=60 (600x600). Fits Multilume Slim & Multilume Re:Think. Also with Organic Response (only with a fixed connection or cord and plug). | 41028 |
|
Wieland T-connector | Wieland 5-way T-connector | 91026 |
|
Wieland T-connector | Wieland 3-way T-connector | 91025 |
|
IR dongle for Organic Response | IR dongle for Organic Response equipped luminaire. | 86279 |
|
Frame for surface mounting | Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. | 41026 |
|
Frame for surface mounting | Frame for surface mounting, H=60 (300x1200 VTB). Fits Multilume Re:Think. Also with Organic Response (only with a fixed connection or cord and plug). | 41029 |
|
WAGO connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 91244 |
|
WAGO connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 91243 |
|
Wieland connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92793 |
|
WAGO T-connector | WAGO T-Connector, 3-way, white | 91067 |
|
WAGO T-connector | WAGO T-connector, 5-way, 2 locking levers, blue | 88228 |
|
Wieland connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92799 |
|
Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 1 m cable | 86407 |
|
Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 1 m cable | 86408 |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included. | 86409 |
|
|
External Organic Response sensor incl. DALI PSU | Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included. | 86412 |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 3.2 m cable | 86411 |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 3.2 m cable | 86410 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 |
|
Frame for surface mounting | Dwide Multilume Re:Think & Multilume Slim, Surface mounted frame, 600x600. | 41033 |
|
Frame for pendant installation H=60 mm | Dwide & Multilume Slim pendant frame 600x600 incl. wires | 41034 |
|
Ensto connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92786 |
|
|
Ensto connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92785 |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. | 92788 |
|
Ensto T-connector | Ensto T-connector 3-way, white | 92783 |
|
Ensto T-connector | Ensto T-connector 5-way, grey | 92784 |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. | 92787 |
|
Fence | Fence 600x600 white. Only for T-bars T24. | 41252 |
|
Fence | Fence 600x600 champagne. Only for T-bars T24. | 41254 |
|
Fence | Fence 600x600 black. Only for T-bars T24. | 41253 |
|
Sky frame | Sky frame for ceiling window effect 600x600, white. Only for T-bars T24. | 41245 |
|
Circle Ice | Circle Ice 600x600 White. | 41248 |
|
Circle Edge | Circle with bevelled edge 600x600, White. | 41246 |
|
Circle | Circle with straight edge 600x600, White. | 41247 |
|
Compago | Compago framework 600x600, Grey. Only for T-bars T24. | 41250 |
|
Compago | Compago framework 600x600, white. Only for T-bars T24. | 41249 |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg | 41051 |
|

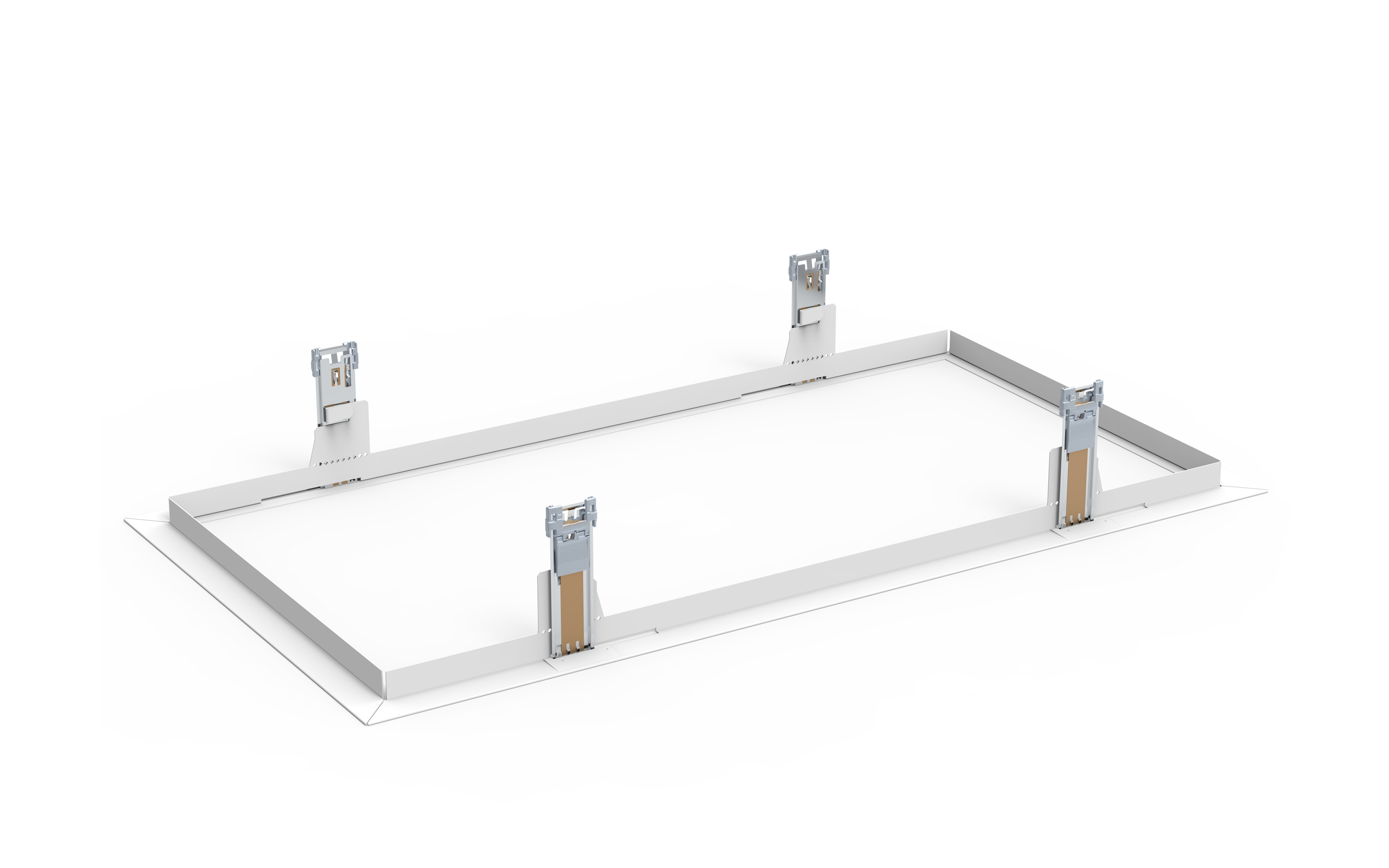

Recessed frame solid ceiling | Recessed frame for VTB frame 300x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 3kg | 41048 |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 300x1200 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4kg | 41049 |
