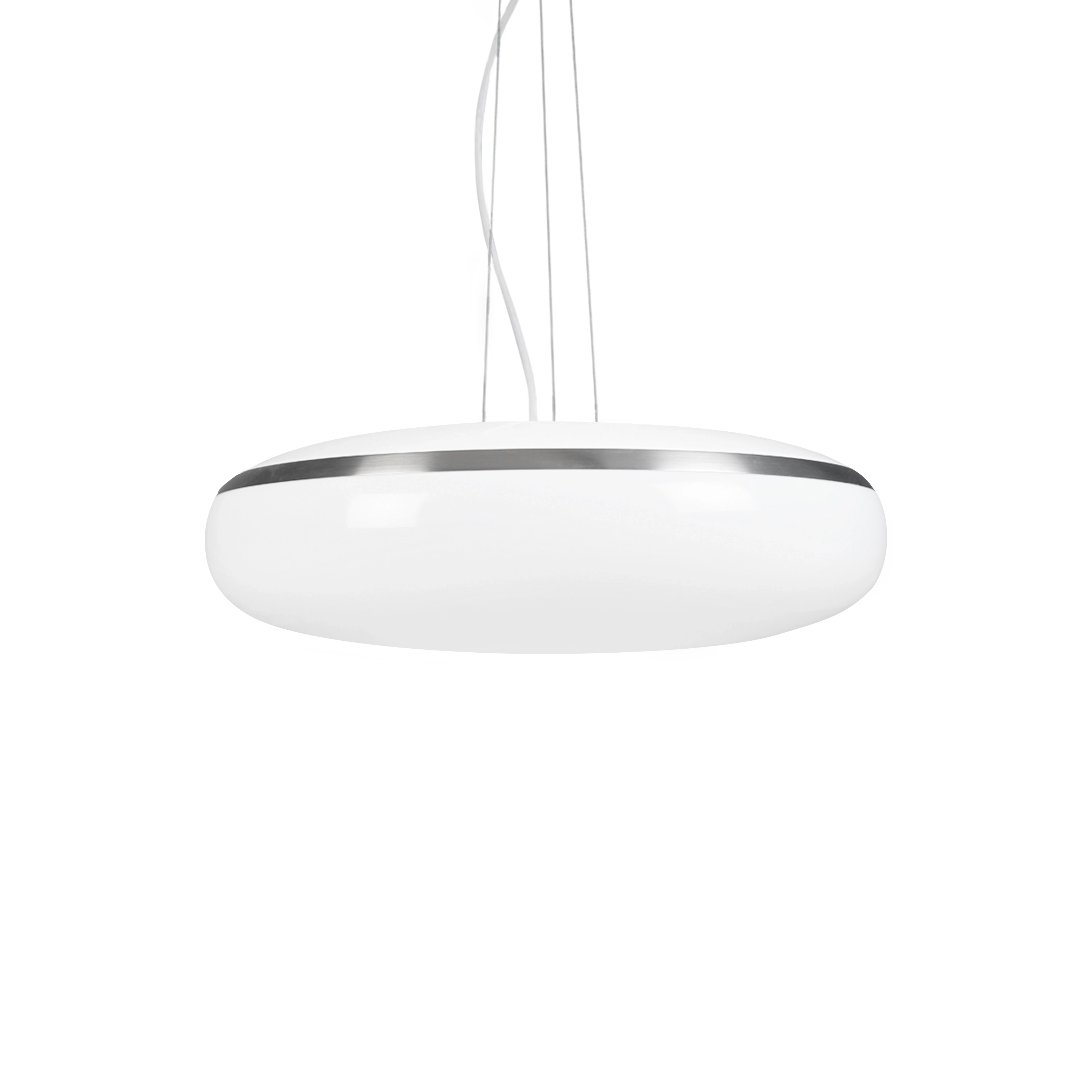

Tibi Pendant
16117 Tibi 16117
A round beam decorative luminaire in three sizes for entrances and stairwells, for example. Also available with Tunable White for dynamic lighting.
Installation
Two-point suspension, c/c 55–78 mm.
Connection
Snap-in terminal block 5x2.5 mm², 1-phase through-wiring possible. Wire length 2.5 m and a 2.5 m white fabric cord. Surface mounted cable possible. Height adjustment is done on the luminaire via a friction lock.
Design
Diffuser in specular opal acrylic. Luminaire body and decorative edge ring in aluminium. Decorative edge ring enameled in glossy black (RAL 9005) or clear enamelled brushed aluminium. Colour-coordinated ceiling cup.
Dimming
DALI/Phase-pulse control as standard.
Miscellaneous
A cut-out in the ceiling cup is made using cutters 94248 for a surface mounted mains cable.
Luminaires with Tunable White (2700-6500 K) are equipped with DALI device Type 8 driver
Media
Excess wire is inserted into the void in the casting.
Colour-coordinated ceiling cup attached by magnet without visible screws.
Installation clips
Tibi
Tibi produces a crisp, radiant light, floating in the space with its distinct form. Its classical super ellipse shape is maximised with advanced LED technology to create a stunning light experience. Its extensive range includes...
More about the family TibiOther products
Document
Specification
Luminaires with Tunable White are listed with values for 4000 K.
Filter
Showing 14 of 14 articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diamater, mm | Louvre | Light control | CLO function active | Miscellaneous | |
|---|---|---|---|---|---|---|---|---|---|---|
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diamater, mm | Louvre | Light control | CLO function active | Miscellaneous | |
| 54790-402 | 17 | 1790 | 4000 | Brushed aluminium | 400 | Opal | DALI/Phase-pulse | Yes | ||
| 54791-402 | 48 | 5820 | 4000 | Brushed aluminium | 600 | Opal | DALI/Phase-pulse | Yes | ||
| 54792-402 | 57 | 6990 | 4000 | Brushed aluminium | 800 | Opal | DALI/Phase-pulse | Yes | ||
| 54793-402 | 17 | 1790 | 4000 | Black | 400 | Opal | DALI/Phase-pulse | Yes | ||
| 54794-402 | 48 | 5820 | 4000 | Black | 600 | Opal | DALI/Phase-pulse | Yes | ||
| 54795-402 | 57 | 6990 | 4000 | Black | 800 | Opal | DALI/Phase-pulse | Yes | ||
| 55268-402 | 17 | 1740 | 3000 | Brushed aluminium | 400 | Opal | DALI/Phase-pulse | Yes | ||
| 55269-402 | 48 | 5657 | 3000 | Brushed aluminium | 600 | Opal | DALI/Phase-pulse | Yes | ||
| 55270-402 | 57 | 6794 | 3000 | Brushed aluminium | 800 | Opal | DALI/Phase-pulse | Yes | ||
| 55271-402 | 17 | 1740 | 3000 | Black | 400 | Opal | DALI/Phase-pulse | Yes | ||
| 55272-402 | 48 | 5657 | 3000 | Black | 600 | Opal | DALI/Phase-pulse | Yes | ||
| 55273-402 | 57 | 6794 | 3000 | Black | 800 | Opal | DALI/Phase-pulse | Yes | ||
| 55274 | 59 | 5120 | Brushed aluminium | 600 | Opal | Yes | Tunable White | |||
| 55275 | 59 | 5120 | Black | 600 | Opal | Yes | Tunable White |
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Cutters | Cutters, each | 94248 |
