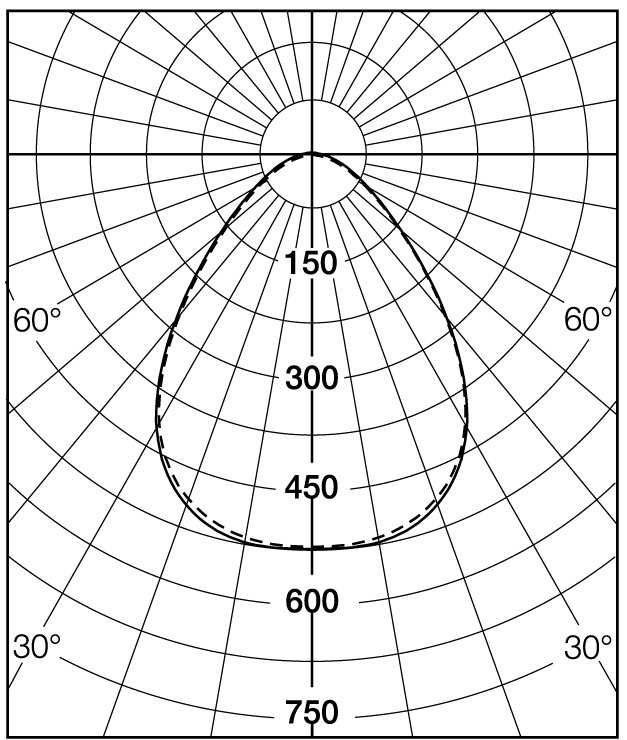

Hero Wide Beam
930 Hero 930
Developed for industrial facilities or sports centres with ball protection certification per VDE 0710-13. Glare-free with different lumen packages and provides a good, glare-free light even from greater heights.
Installation
Flush-mounted, surface-mounted tandem bracket, tube bracket, wire bracket, adjustable ceiling/wall bracket and recess frame. Installation accessories are ordered separately, see accessories.
Connection
2 m connection cable (H07RN-F) with free ends. 3G1.5 mm² or 5G1.5 mm² with DALI/CLO.
Design
Luminaire body made of cast (RAL 9005) aluminium. Louvre frame made of coated sheet steel. Pressure balancing valve in side of luminaire body.
Louvre
Tempered protective glass or PMMA for higher IK classification.
Reflector
Symmetrical reflectors made of semi-gloss metallised aluminium.
Dimming
DALI control with CLO (Constant Light Output) .
e-Sense Move Highbay – dual microwave/PIR sensor and RF unit integrated with the luminaire. Presence control, high/mid/ low/off and lux threshold.
Miscellaneous
Hero mounted with ceiling bracket is certified in accordance with VDE 0710-13.
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Media

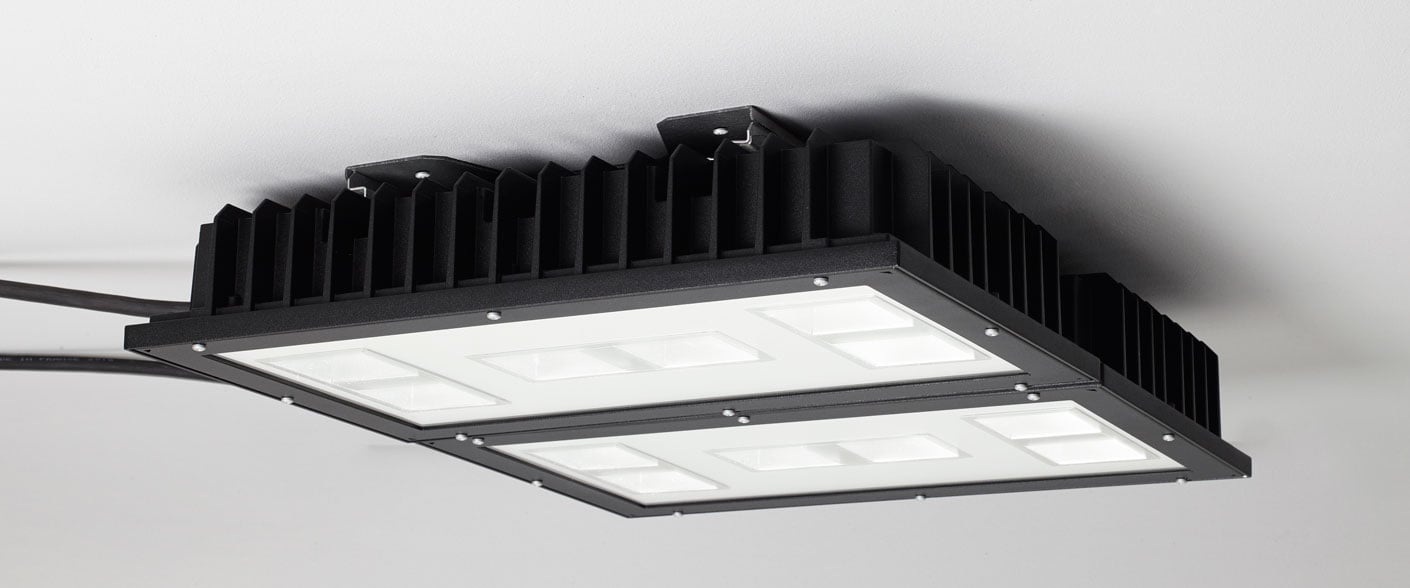

Tandem.

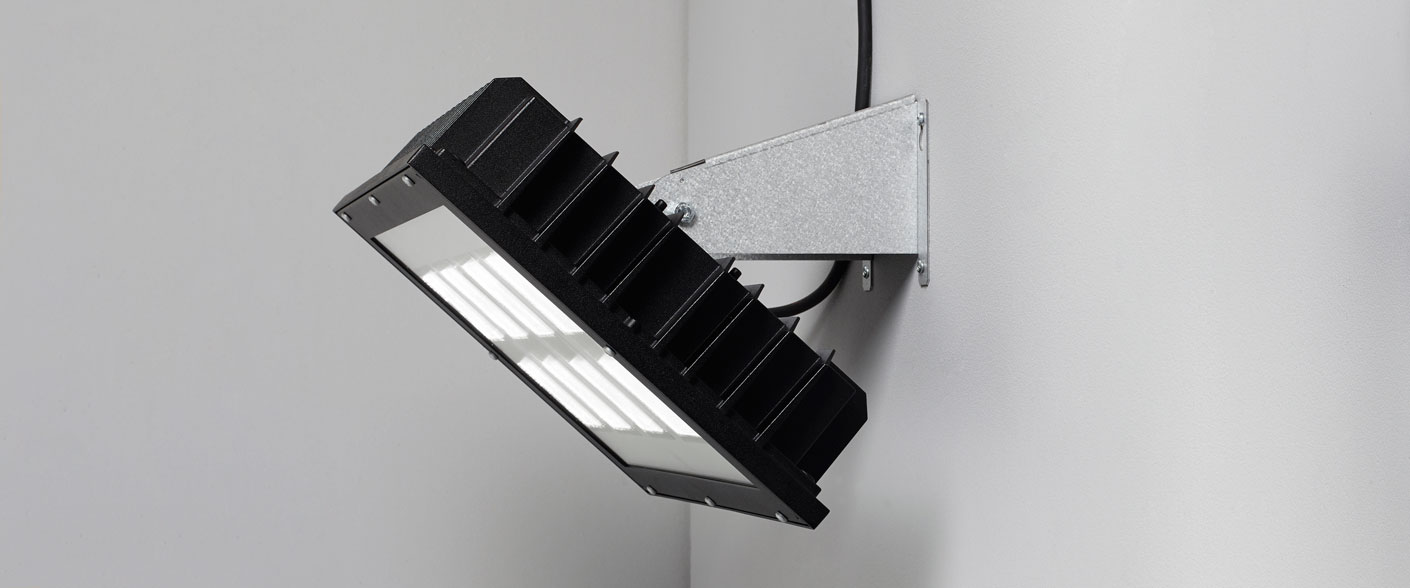

Ceiling/wall installation.

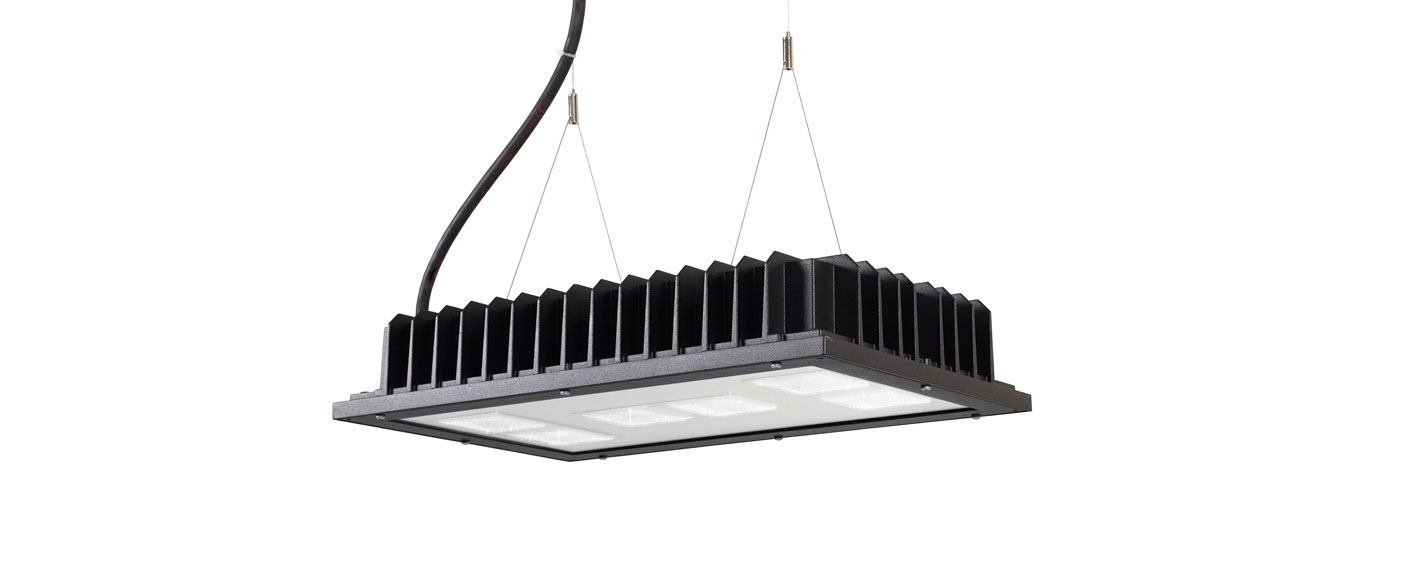

Wires suspension.

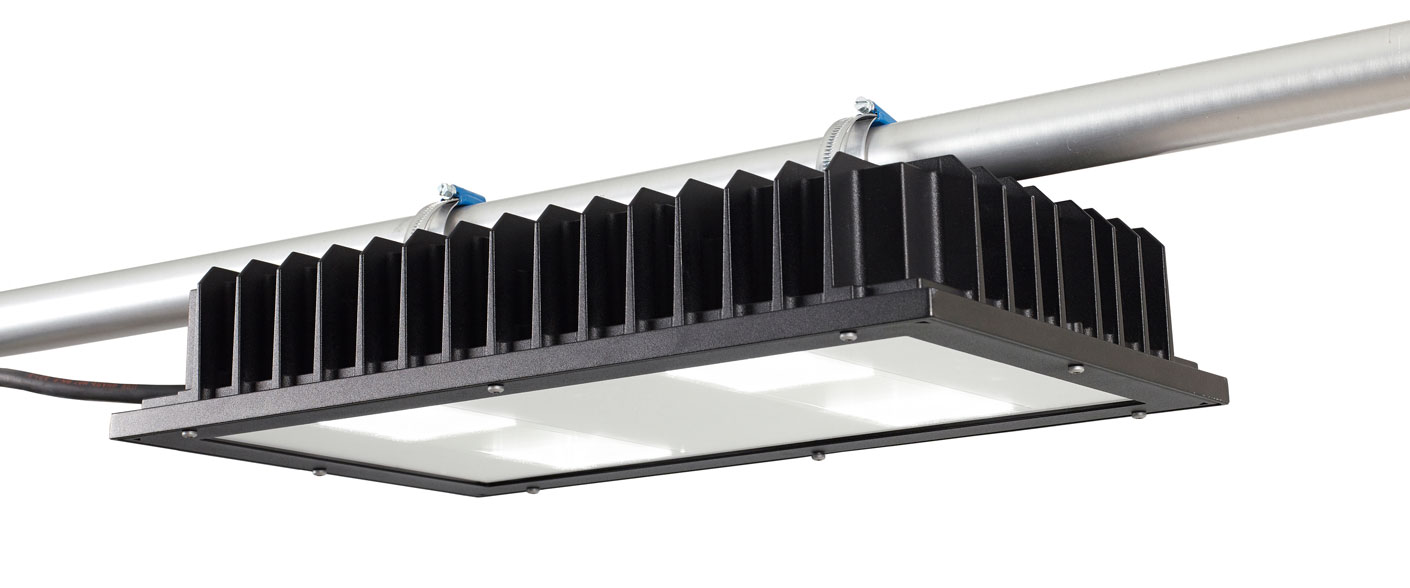

Tube installation.

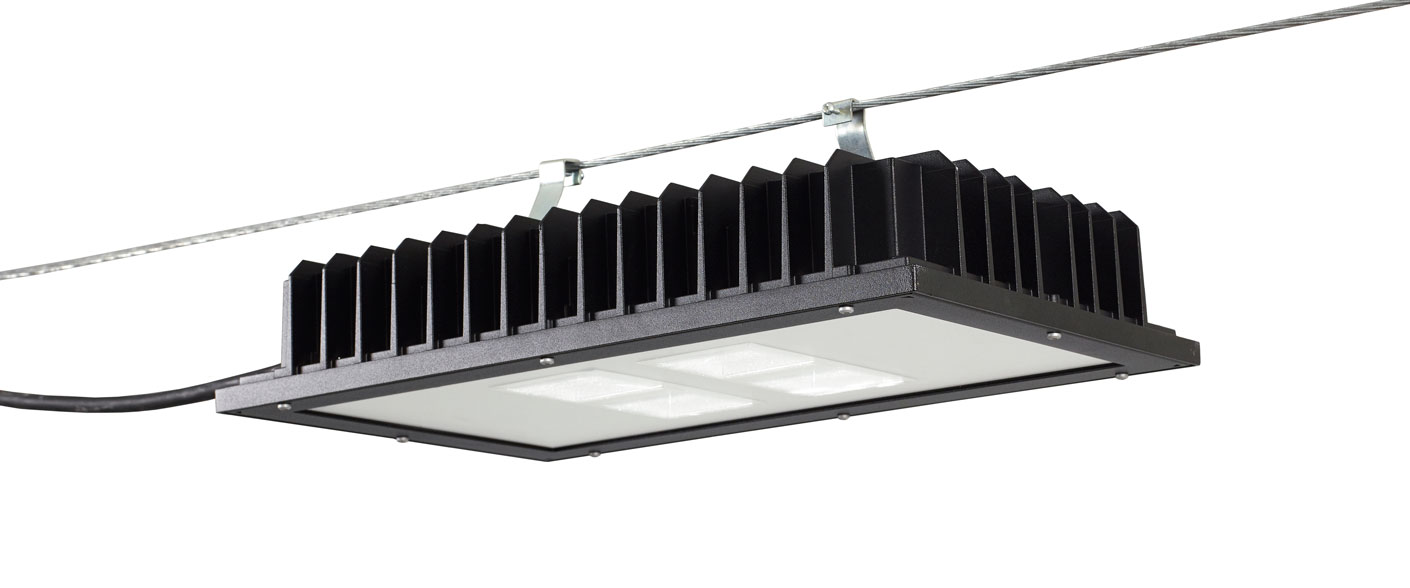

Wire-cable installation.

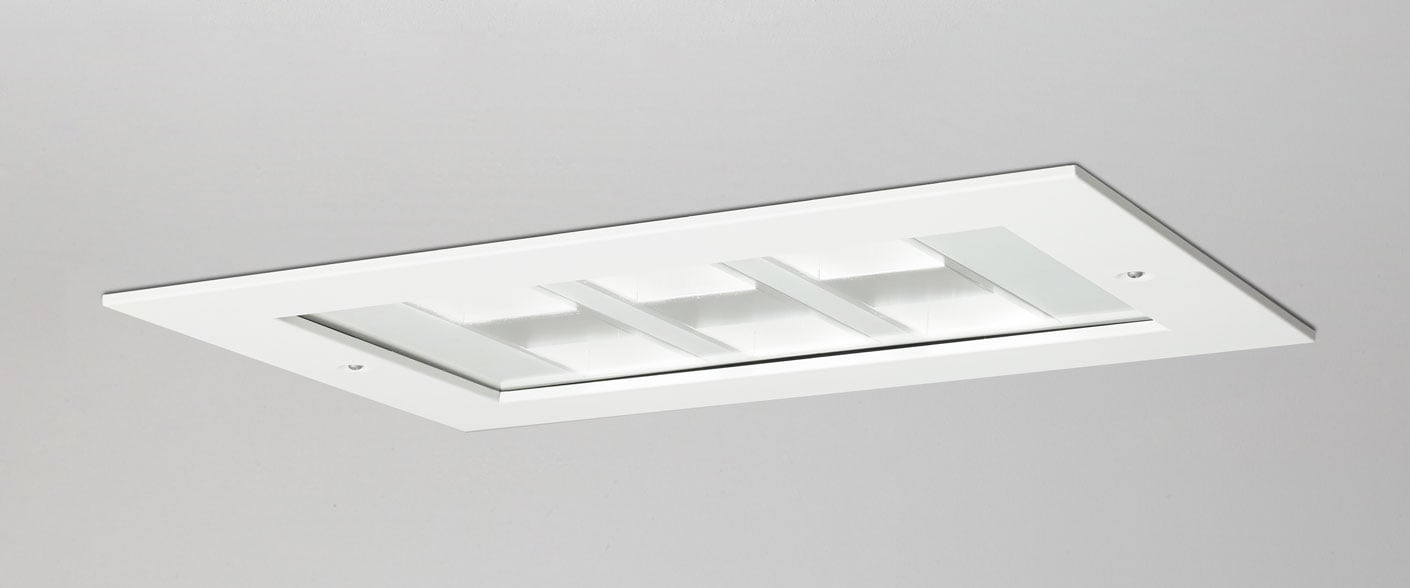

Recess frame.
e-Sense Move Highbay – how it works
Hero
Hero is a robust high bay luminaire with a housing made of cast aluminium and tempered glass or PMMA. Hero mounted with ceiling bracket is certified in accordance with VDE 0710-13. Protection class IP 66 and if PMMA is used, IK...
More about the family Hero
Document
Specification
Filter
Showing 24 of 24 articles
| Art.no. | System Wattage | Lumen output | CCT, K | Length, mm | Light distribution | Protective glass | Light control | CLO function active | |
|---|---|---|---|---|---|---|---|---|---|
| Art.no. | System Wattage | Lumen output | CCT, K | Length, mm | Light distribution | Protective glass | Light control | CLO function active | |
| 31501 | 78 | 12068 | 4000 | 498 | Wide Beam | Flat glass | |||
| 31501-461 | 77 | 12068 | 4000 | 498 | Wide Beam | Flat glass | DALI | Yes | |
| 31501-526 | 79 | 12068 | 4000 | 589 | Wide Beam | Flat glass | e-Sense Move Highbay open area | Yes | |
| 31502 | 100 | 16034 | 4000 | 498 | Wide Beam | Flat glass | |||
| 31502-461 | 99 | 16034 | 4000 | 498 | Wide Beam | Flat glass | DALI | Yes | |
| 31502-526 | 101 | 16034 | 4000 | 589 | Wide Beam | Flat glass | e-Sense Move Highbay open area | Yes | |
| 31505 | 131 | 19723 | 4000 | 498 | Wide Beam | Flat glass | |||
| 31505-461 | 129 | 19723 | 4000 | 498 | Wide Beam | Flat glass | DALI | Yes | |
| 31505-526 | 130 | 19723 | 4000 | 589 | Wide Beam | Flat glass | e-Sense Move Highbay open area | Yes | |
| 31511 | 78 | 12032 | 4000 | 498 | Wide Beam | Acrylic | |||
| 31511-461 | 77 | 12032 | 4000 | 498 | Wide Beam | Acrylic | DALI | Yes | |
| 31511-526 | 79 | 12032 | 4000 | 589 | Wide Beam | Acrylic | e-Sense Move Highbay open area | Yes | |
| 31512 | 100 | 15986 | 4000 | 498 | Wide Beam | Acrylic | |||
| 31512-461 | 99 | 15986 | 4000 | 498 | Wide Beam | Acrylic | DALI | Yes | |
| 31512-526 | 101 | 15986 | 4000 | 589 | Wide Beam | Acrylic | e-Sense Move Highbay open area | Yes | |
| 31515 | 131 | 19664 | 4000 | 498 | Wide Beam | Acrylic | |||
| 31515-461 | 129 | 19664 | 4000 | 498 | Wide Beam | Acrylic | DALI | Yes | |
| 31515-526 | 130 | 19664 | 4000 | 589 | Wide Beam | Acrylic | e-Sense Move Highbay open area | Yes | |
| 31560 | 82 | 11465 | 4000 | 498 | Wide Beam | Frosted glass | |||
| 31560-461 | 81 | 11465 | 4000 | 498 | Wide Beam | Frosted glass | DALI | Yes | |
| 31561 | 106 | 15232 | 4000 | 498 | Wide Beam | Frosted glass | |||
| 31561-461 | 105 | 15232 | 4000 | 498 | Wide Beam | Frosted glass | DALI | Yes | |
| 31562 | 133 | 18737 | 4000 | 498 | Wide Beam | Frosted glass | |||
| 31562-461 | 131 | 18737 | 4000 | 498 | Wide Beam | Frosted glass | DALI | Yes |
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Adjustable wall/ceiling bracket | Adjustable wall/ceiling bracket. Corrosion protection class C4. | 31921 |
|
Ceiling bracket tandem | Ceiling bracket tandem. Corrosion protection class C4. | 31919 |
|
Ceiling bracket | Ceiling bracket. Corrosion protection class C4. | 31920 |
|
Conduit bracket/pair | Conduit bracket/pair. Corrosion protection class C4. | 31911 |
|
Recessed frame | Recessed frame. Corrosion protection class C4. | 31914 |
|
Remote control e-Sense Move Highbay/Customised Stand-alone | Remote control | 86368 |
|
Support bars 600 mm | Support bars for recessed frame. Corrosion protection class C4. | 31922 |
|
|
Support bars 1200 mm | Support bars for recessed frame. Corrosion protection class C4. | 31923 |
|
Wire catenary bracket | Wire catenary bracket/pair. Corrosion protection class C4. | 31910 |
|
Wire Suspension kit | Wire Suspension kit/pair incl. 2 m wire with eye/. Corrosion protection class C4. | 31912 |
