Devina Rimfrost
20384 Devina 20384

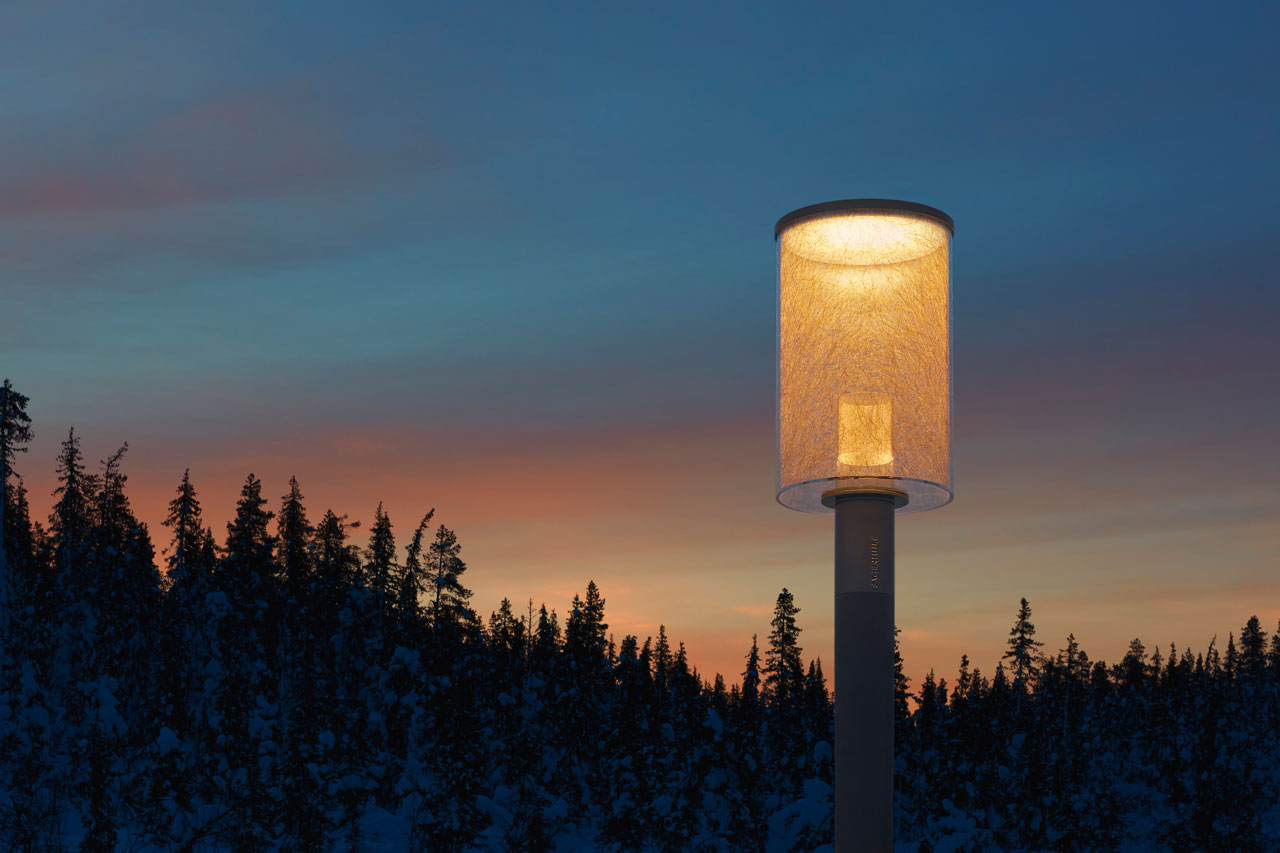

An inner and outer cylinder of transparent mesh diffuses the light, creating a clean crisp winters glow. Rimfrost’s understated aesthetic complements a modern style where you want a clean design without frills.
Installation
Luminaire for assembly on a post, with post top Ø 60 mm and on wall with a wall bracket.
Connection
Class I. Supplied with 5 m 5x1,5 mm² connection cable (FQQ).
Design
Body and cover in die-cast aluminium. The cylinder impact and UV-resistant acrylic (PMMA). Driver is integrated in the luminaire. Both the cylinder and the inner core a UV-resistant transparent mesh.
Reflector
Reflector in painted (white) aluminium.
Light distribution
Omnidirectional.
Dimming
DALI and CLO as standard. Night-time dimming 1 and 2, dims down for six and eight hours respectively. For more information, see Light control.
Designed by
In collaboration with Light Bureau.
Standard colour
White with pearl effect.
LED-information
Driver with integrated surge protection (DM 6 kV, CM 8 kV).
Miscellaneous
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
The luminaire post shall be provided with impact protection if motor traffic occurs in its environment.
Media
Devina
History of the lantern
Devina
To combine an alluring ageless form with a light quality to match we turned to the most enduring of design principles: the golden ration. The precisely proportioned cylinders provide aesthetic symmetry but with the ability to...
More about the family Devina
Document
Specification
Low Lumen (LL)
High Lumen (HL)
Filter
Showing 12 of 12 articles
| Art.no. | System Wattage | Average W | Lumen output | Light distribution | Light control | Light source colour | CLO function active | Protective class | Miscellaneous | |
|---|---|---|---|---|---|---|---|---|---|---|
| Art.no. | System Wattage | Average W | Lumen output | Light distribution | Light control | Light source colour | CLO function active | Protective class | Miscellaneous | |
| 307002-461 | 18 | 18.5 | 2031 | Symmetrical | DALI | 830 | Yes | 1 | LL | |
| 307002-464 | 18 | 18.5 | 2031 | Symmetrical | Night dimming 1 | 830 | Yes | 1 | LL | |
| 307002-465 | 18 | 18.5 | 2031 | Symmetrical | Night dimming 2 | 830 | Yes | 1 | LL | |
| 307003-461 | 16 | 16.5 | 2007 | Symmetrical | DALI | 840 | Yes | 1 | LL | |
| 307003-464 | 16 | 16.5 | 2007 | Symmetrical | Night dimming 1 | 840 | Yes | 1 | LL | |
| 307003-465 | 16 | 16.5 | 2007 | Symmetrical | Night dimming 2 | 840 | Yes | 1 | LL | |
| 307052-461 | 27 | 27.5 | 3001 | Symmetrical | DALI | 830 | Yes | 1 | HL | |
| 307052-464 | 27 | 27.5 | 3001 | Symmetrical | Night dimming 1 | 830 | Yes | 1 | HL | |
| 307052-465 | 27 | 27.5 | 3001 | Symmetrical | Night dimming 2 | 830 | Yes | 1 | HL | |
| 307053-461 | 24 | 25 | 3011 | Symmetrical | DALI | 840 | Yes | 1 | HL | |
| 307053-464 | 24 | 25 | 3011 | Symmetrical | Night dimming 1 | 840 | Yes | 1 | HL | |
| 307053-465 | 24 | 25 | 3011 | Symmetrical | Night dimming 2 | 840 | Yes | 1 | HL |
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Aluminium post, brushed alu | Aluminium post for foundation, brushed alu, H = 3.52 m (3.02 m above ground). | 307036 |
|
|
Aluminium post, brushed alu | Aluminium post for foundation, brushed alu, H = 4.17 m (3.67 m above ground). | 307038 |
|
|
Aluminium post, brushed alu | Aluminium post with base plate, brushed alu, H = 3.02 m. | 307035 |
|
|
Aluminium post, brushed alu | Aluminium post with base plate, brushed alu, H = 3.67 m. | 307037 |
|
Wall bracket for Devina | Wall bracket Ø 60, white with pearl effect (RAL 9016 G40). | 303680-559 |
